Part # | Description | Photo | Price | In Stock | Category |
---|---|---|---|---|---|
W+S | Standard Support Package, 1 Yr (W+S) | - | CASSINI | ||
WIGIG-CASSINI | 60 GHz WiGig Devices | Application | |||
WARRANTY | Standard Warranty Discount, 1 Yr | - | CASSINI | ||
T-X | Exchange TIMs, 1 Yr | - | CASSINI | ||
T-U | Upgrade TIMs, 1 Yr | - | CASSINI | ||
T-L | Loaner TIMs, 1 Yr | - | CASSINI | ||
SU | Software Updates - 1 Year | - | RI7100A | ||
SR20 | SandTek Modular Automated Test Equipment (Cassini) | 2 | System | ||
S001 | Travel Labor & Costs for On-site System Installation & Training | - | CASSINI | ||
RITS | Roos Instruments Test Seconds (45 Million) | System | |||
RIK0396A | FixKit, Digital TIM to 2x Engage Digital, 40 pins | $2,790 | Fixture Inserts | ||
RIK0385A | Block, Device Power Plus TIM, DC Pins (2x5 x7) | $1,030 | 0 | Fixture Blocks | |
RIK0384A | Pod Module, Octal Opto Relay Driver, 16 channel | $1,660 | 0 | Fixture Modules | |
RIK0383A | Engage RF Insert, 40 GHz GPPO-SMA(m) Set back floating | $1,300 | 0 | Fixture Inserts | |

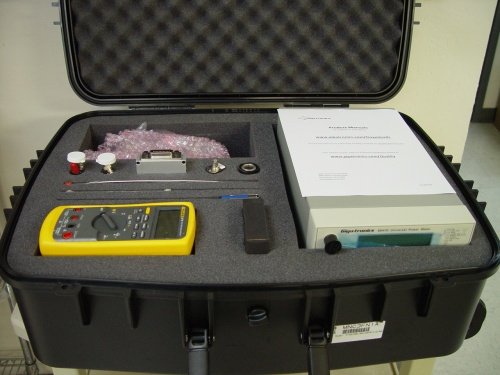

RIK0382A | Calibration Kit, 40GHz Base Kit | $41,600 | Calibration Tools | ||
RIK0380A | Engage RF Insert, 40 GHz GPPO-SMA(f) Set back floating | $1,260 | 0 | Fixture Inserts | |
RIK0378A | Open Fixture, DIB Dock, Engage+Sides, Gen2 | $9,910 | 0 | Fixture Top Plates | |
RIK0377A | Open DIB Dock, Stiffener, Top Hat DIB | $3,950 | 0 | Fixture DIB Layer | |
RIK0376A | Engage RF Insert, 6 Ghz, Quad PKZ#12-Bullseye | $1,450 | 0 | Fixture Inserts | |
RIK0375A | Engage RF Insert, 50 GHz SSMP-2.4mm Cal | $730 | 0 | Calibration Tools | |
RIK0374A | Engage RF Insert, 26 GHz SSMP-SMA Calibrate | $700 | 0 | Calibration Tools | |
RIK0367A | 50 GHz Calibration Kit Cal Service | $4,660 | - | Services | |
RIK0360A | Open Fixture, DIB Dock, Engage + Sides, Long Legs | $7,270 | 0 | Fixture Top Plates | |
RIK0359A | Open DIB Dock, Wall w/ Air Fitting, Top Hat DIB | $154 | Fixture DIB Layer | ||
RIK0358A | RF Cable, Semi-Rigid SSMP(m) Bulkhead - 2.4mm(m), 12" | $750 | Fixture Cables | ||
RIK0357A | RF Cable, Flex SSMP(m) Bulkhead - 2.92mm(m), 12" | $750 | Fixture Cables | ||
RIK0356A | Block, FIX Power Spyder, Pod+Open Fixture | $2,030 | 0 | Fixture Blocks | |
RIK0355A | Engage WG Insert, 70-86GHz, RR12 Top Hat (DIB Side) | $980 | 0 | Fixture DIB Layer | |
RIK0354A | FixKit, 70-86GHz TIM to 2x Engage WG RR12 | $3,930 | Fixture Inserts | ||
RIK0353A | FixKit, Fixture CBits Pod w/ 2x Engage DC 16 Insert | $545 | Fixture Inserts | ||
RIK0352A | FixKit, Fixture Pod Pwr to 1x Engage DC 16 pin Insert w/wires | $545 | Fixture Inserts | ||

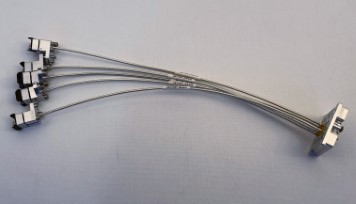

RIK0351A | FixKit, 25GHz TestSet TIM to 5x Engage SSMP Inserts | $6,150 | Fixture Inserts | ||
RIK0350A | FixKit, DC Pulser TIM to 3x Engage DC 16 pin Inserts | $1,820 | Fixture Inserts | ||
RIK0349A | FixKit, PhaseNoise TIM Block to 2x Dual BE Inserts | $2,230 | Fixture Inserts | ||
RIK0348A | FixKit, WF+LNC TIM Blk to 4x Dual BE Inserts | $4,180 | Fixture Inserts | ||
RIK0347A | FixKit, 50-70GHz TIM to 2x Engage WG RR15 | $3,928 | Fixture Inserts | ||
RIK0346A | FixKit, 2-50GHz TIM to 2x Engage SSMP Inserts | $2,908 | Fixture Inserts | ||
RIK0345A | FixKit, Receiver TIM to 2x Engage Dual BE & 2 SMA(f) | $2,925 | Fixture Inserts | ||
RIK0344A | FixKit, Digital TIM to 4x Engage Digital, 80 pins | $4,410 | Fixture Inserts | ||
RIK0343A | FixKit, 25 GHz Src3 TIM to Engage SSMP | $1,510 | Fixture Inserts | ||
RIK0342A | FixKit, DC TIM Harness to 4x Engage DC 16 pin Inserts | $1,900 | Fixture Inserts | ||
RIK0341A | Pod Module, DIB MEMS Switch Driver | $910 | 0 | Fixture Modules | |
RIK0340A | Block, Device Power, Harness w/out DC Inserts | $846 | Fixture Blocks | ||
RIK0339A | RF Cable, Semi-Rigid, SSMP#12(f)-SSMP(f) Bulkhead, 12" | $1,048 | Fixture Cables | ||
RIK0338A | RF Cable, Semi-Rigid, SSMP#12(f)-SSMP(f), 12" | $320 | Fixture Cables | ||
RIK0337A | Engage RF Insert, PKZ#12-SSMP Fixture Side | $1,230 | Fixture Inserts | ||
RIK0336A | RF Cable Semi-rigid SSMP(M) Bulkhead - 2.4mm (M) 8" | $840 | Fixture DIB Layer | ||
RIK0335A | Engage RF Insert, SSMP Mate Frame Top Hat (DIB Side) | $210 | 17 | Fixture DIB Layer | |
RIK0334A | Open Fixture, Short DIB Dock, Engage + Sides | $5,460 | 0 | Fixture Top Plates | |
RIK0333A | Open Fixture, Frame Assembly, Short | $634 | 0 | Fixture Sides | |
RIK0332A | Open DIB Dock, Wall, Top Hat DIB | $111 | 0 | Fixture DIB Layer | |
RIK0331A | Open DIB Dock, Leg, Top Hat DIB | $85 | 0 | Fixture DIB Layer | |

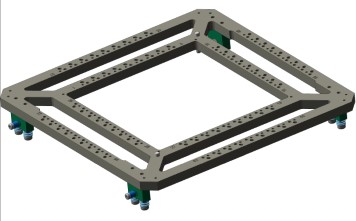

RIK0330A | Open DIB Dock, Stiffener, Top Hat DIB | $2,490 | 0 | Fixture DIB Layer | |
RIK0329A | Engage WG Insert, 50-70GHz, RR15 Fixure Side | $429 | 0 | Fixture Inserts | |
RIK0328A | Engage WG Insert, 50-70GHz, RR15 Top Hat (DIB Side) | $976 | 0 | Fixture DIB Layer | |
RIK0327A | Engage RF Insert, 18 Ghz, Dual PKZ#12-Bulls Eye | $980 | 0 | Fixture Inserts | |
RIK0326A | Engage Lock, DIB Pedestal Support, Rectangle | $536 | 1 | Fixture Pedestal Support & Clamps | |
RIK0325A | Engage Lock, Pulldown Catch DIB Clamp, Qty 1 | $275 | 1 | Fixture Pedestal Support & Clamps | |
RIK0324A | Engage Lock, DIB Clamp Rectangle | $811 | 1 | Fixture Pedestal Support & Clamps | |
RIK0323A | Engage RF Insert, 50 GHz SSMP Fixture Side | $1,450 | 17 | Fixture Inserts | |
RIK0322A | RF Cable, Semi-Rigid SSMP#12(f) - 2.4mm(m), 12" | $750 | 100 | Fixture Cables | |
RIK0321A | Block, 2-50 GHz RF | $740 | Fixture Blocks | ||
RIK0320B | SSD Replacement Cassini with Cust Image | $990 | Replacement Parts | ||
RIK0320A | SSD Replacement for EPC with ELO Touch | $990 | Replacement Parts | ||
RIK0319A | Block, 80 GHz Dual RR-12 E Band | $1,660 | Fixture Blocks | ||
RIK0318A | RF Cable, Conform, PKZ#12(f)-PKZ#12(f), 12" | $260 | Fixture Cables | ||
RIK0317A | Block, 50-70 GHz Dual RR-15 V Band | $1,670 | Fixture Blocks | ||

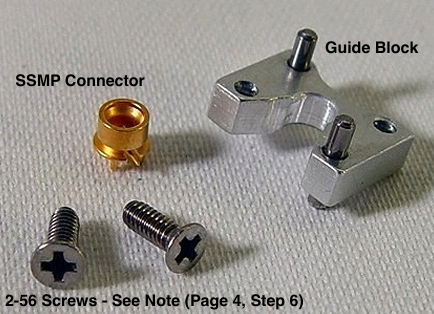

RIK0316A | Engage RF Insert, 20 GHz SSMP Conn & Support (DIB Side) | $260 | 17 | Fixture DIB Layer | |
RIK0315A | Open Fixture, Quad Top Plate & Covers | $1,950 | 0 | Fixture Top Plates | |
RIK0314A | Open Fixture, Tall DIB Dock Engage + Sides | $7,725 | 0 | Fixture Top Plates | |
RIK0313A | 50 GHz Calibration Kit Add-On | $39,530 | 0 | Calibration Tools | |
RIK0312A | V-Band, WR15 Calibration Kit Cal Service | $5,232 | - | Services | |
RIK0311A | V-Band, WR-15 50-75 GHz, Cal Kit Add-On | $43,660 | 0 | Calibration Tools | |
RIK0310A | E-Band, WR12 Calibration Kit Cal Service | $5,232 | - | Services | |
RIK0309B | Engage DC Insert, 16 Pin 2x4 Header & Ribbon Cbls | $371 | Fixture Inserts | ||
RIK0309A | Engage DC Insert, 16 pin w/ PCB ribbon longer | $400 | 0 | Fixture Inserts | |
RIK0308A | Engage DC Insert, 16 pin w/ PCB ribbon | $390 | 0 | Fixture Inserts | |
RIK0307A | Block, FIX Power, Pod Carrier, Open Fixture | $1,680 | 0 | Fixture Blocks | |

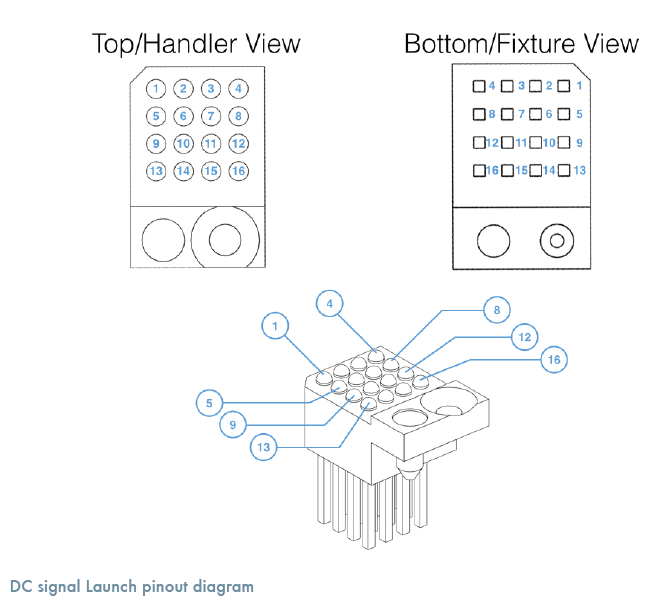

RIK0306B | Engage DC Insert, 16 pin | $380 | 0 | Fixture Inserts | |
RIK0305A | Open Fixture, Quick Lock Top Plate | $840 | 0 | Fixture Top Plates | |
RIK0304A | Open Fixture, Prober Engage Assy | $4,240 | 0 | Fixture Top Plates | |
RIK0303A | Open Carrier, Pods Backplane | $1,010 | 0 | Fixture Carriers | |
RIK0302A | Open Fixture, Frame Assembly, Long | $830 | 0 | Fixture Sides | |
RIK0301A | Virtual Workstation Network Appliance | $2,250 | - | Replacement Parts | |
RIK0300A | SN Chip Wire Length Adjustable 4 Wire (1ea.) | $150 | - | Fixture Accessories | |
RIK0298A | RF Cable, Flex, PKZ #12(f)-MCX(m), 20" | $210 | - | Fixture Cables | |
RIK0297A | E-Band WR-12 70-87 GHz, Cal Kit Add-On | $61,630 | 0 | Calibration Tools | |
RIK0296A | Engage Digital Insert, Engage, 20 pin, Coax Ribbon | $950 | 0 | Fixture Inserts | |
RIK0293B | Block, 80 GHz Dual RR-12 E Band | $1,710 | 0 | Fixture Blocks | |
RIK0293A | Block, 80 GHz Dual RR-12 E Band | $1,200 | 0 | Fixture Blocks | |
RIK0290B | Pod Module, C-Bits (24) | $720 | 0 | Fixture Modules | |
RIK0290A | C-Bits Fixture Pod | $530 | 0 | Fixture Modules | |
RIK0289A | Pod Module, 2 Dual 6 GHz SP4T RF Switches | $1,660 | 0 | Fixture Modules | |
RIK0288A | Adapter, RR12-WR12, 1 inch | $630 | 0 | Fixture Cables | |
RIK0287A | Block, FET Pulser Bulk Power TIM | $810 | 0 | Fixture Blocks | |
RIK0286A | Block, Diag/Cal, High Power Supply/Pulser TIM | $1,530 | 0 | Calibration Tools | |
RIK0285A | Matrix Fixture, Quad Top Plate (Numeric) | $1,100 | 0 | Fixture Top Plates | |
RIK0284A | RF Cable, Conform, SMA(m)-SMA(m), 11" | $80 | - | Fixture Cables | |
RIK0283B | Adapter, WR-12 WG to RR-12 Launch | $860 | 0 | Fixture Cables | |
RIK0283A | Adapter, WR-12 WG to RR-12 Launch | $860 | 0 | Fixture Cables | |
RIK0280A | RF Cable, Flex, SMA(m)- MCX(m), 14" | $140 | - | Fixture Cables | |
RIK0279A | Matrix Fixture, Quad DIB Clamp | $740 | 0 | Fixture Pedestal Support & Clamps | |
RIK0278A | Matrix Fixture, Quad Pedestal Support | $170 | 0 | Fixture Pedestal Support & Clamps | |
RIK0277A | Matrix Fixture, Quad Top Plate (Alpha+Numeric) | $1,120 | 0 | Fixture Top Plates | |
RIK0276A | Keyboard Tray, Aux Rack | $510 | 0 | Replacement Parts | |
RIK0275A | Soft Dock Resource Plate, DSub 25 pin | $40 | - | Fixture Resource Plates | |
RIK0274A | Soft Dock Resource Plate, DSub 15 pin | $40 | - | Fixture Resource Plates | |
RIK0273A | RF Insert, 20 GHz SSMP Calibrate (Side A) | $670 | 0 | Calibration Tools | |
RIK0272A | Adapter, SMA(f)-N(f) | $390 | - | Fixture Cables | |
RIK0271A | Soft Dock Resource Plate, N-Type Connector | $40 | - | Fixture Resource Plates | |
RIK0270A | Soft Dock Resource Plate, Large Corner Filler | $20 | - | Fixture Resource Plates | |
RIK0269A | Soft Dock Resource Plate, Small Corner Filler | $20 | - | Fixture Resource Plates | |
RIK0268A | Soft Dock Center Rail | $250 | 0 | Fixture Resource Plates | |
RIK0267B | Parallel Handler POD (RI8517B) + 15' RIFL Cable | $3,500 | 0 | Fixture Control PODs | |
RIK0267A | Parallel Handler POD + 15' RIFL Cable | $3,500 | 0 | Fixture Control PODs | |
RIK0266A | Serial Handler POD (RI8516B) + 15' RIFL Cable | $3,380 | 0 | Fixture Control PODs | |
RIK0265A | GPIB Prober POD (RI8579B) + 15' RIFL Cable | $3,590 | 0 | Fixture Control PODs | |
RIK0264A | GPIB Instrument POD (RI8502B) + 15' RIFL Cable | $3,590 | - | Fixture Control PODs | |
RIK0263A | GPIB Handler POD (RI8552B) + 15' RIFL Cable | $3,420 | - | Fixture Control PODs | |
RIK0262A | QuickLock, 2 piece 2 Site DUT Clamp, Seiko/Epson | $290 | 0 | Fixture Pedestal Support & Clamps | |
RIK0261A | QuickLock, Center Bar Support 80mm Pitch | $290 | 0 | Fixture Pedestal Support & Clamps | |
RIK0260B | QuickLock, Dual DUT Support, Seiko/Epson | $810 | 0 | Fixture Pedestal Support & Clamps | |
RIK0260A | QuickLock, Dual DUT Support, Seiko/Epson, 4 screw | $780 | 0 | Fixture Pedestal Support & Clamps | |
RIK0259A | QuickLock, DUT Clamp, Seiko/Epson, 8 screw | $780 | 1 | Fixture Pedestal Support & Clamps | |
RIK0258A | RF Cable, Flex, PKZ #12(f)-SMA(m), 12" | $180 | - | Fixture Cables | |
RIK0257A | MMPX Connector Extraction Tool | $780 | 0 | Fixture Accessories | |
RIK0256A | Driver Board, Ribbon Cable, 20" (Qty 1) | $30 | 0 | Fixture Modules | |
RIK0255A | Driver Board for Fixture Switches & Attenuators | $260 | - | Fixture Modules | |
RIK0254A | Attenuator Module, Fixture 20 GHz 31dB in 1dB steps | $3,660 | 0 | Fixture Modules | |
RIK0253A | Pin Switch Module, Hi IP3 SP4T, 20 GHz, Reflective | $3,050 | - | Fixture Modules | |
RIK0252A | Matrix Carrier Mount, 20 GHz Pin Switch or Attenuator | $60 | - | Fixture Modules | |
RIK0251A | Bottom Plate Mount, 20 GHz Pin Switch or Attenuator | $320 | - | Fixture Modules | |
RIK0250A | Pin Switch Module, Hi IP3 SP4T 20 GHz, Absorptive | $3,250 | - | Fixture Modules | |
RIK0249A | Block, Diag/Cal, Device Power TIM | $610 | - | Fixture Blocks | |
RIK0248A | RF Cable, Conform, SSIS(m)-SMA(f), 3.4" | $190 | - | Fixture Cables | |
RIK0247A | RF Cable, Flex, SSIS(m)-SMA(m), 11" | $250 | - | Fixture Cables | |
RIK0246A | RF Cable, Conform, PKZ#12(f)-MCX(m), 12" | $160 | - | Fixture Cables | |
RIK0245A | 40 GHz Calibration Kit Cal Service | $5,580 | - | Services | |
RIK0244A | Cassini 16 Test Head Double Counter-weight | $1,010 | 0 | Fixture Accessories | |

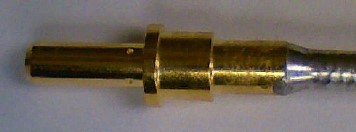

RIK0243A | RF Cable, Conform, PKZ#12(f)-PKZ#12(f), 16" | $250 | - | Fixture Cables | |
RIK0242A | Cassini 16 Test Head Single Counter-weight | $520 | 0 | Fixture Accessories | |
RIK0241A | QuickLock, Pedestal Support, Rasco Quad | $650 | 0 | Fixture Pedestal Support & Clamps | |
RIK0240A | QuickLock, DUT Clamp, Rasco Quad | $1,210 | 4 | Fixture Pedestal Support & Clamps | |
RIK0239A | QuickLock, Pedestal Support, Pin Aligned | $740 | 1 | Fixture Pedestal Support & Clamps | |

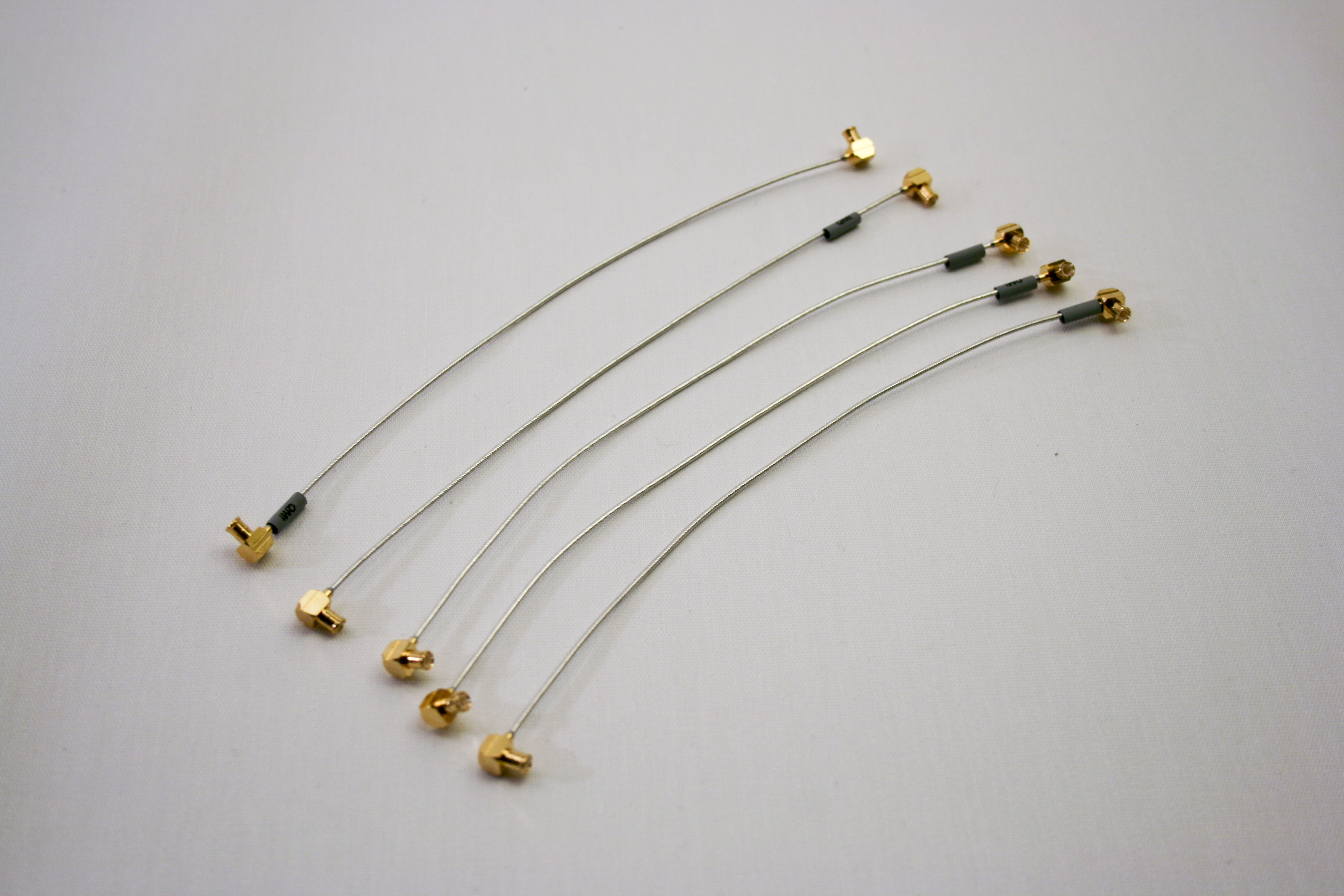

RIK0238A | RF Cable, Flex, 90° MCX(m)-90° MCX(m), 12" | $110 | - | Fixture Cables | |
RIK0237B | RF Cable, Conform, PKZ#12(f)-K(m), 2" | $340 | - | Fixture Cables | |
RIK0237A | RF Cable, Semi-Rigid, PKZ#12(f)-K(m), 2" | $300 | - | Fixture Cables | |
RIK0236A | Matrix Carrier Extra, RIFL (B7A), 5 Modules + Cable | $1,150 | 0 | Fixture Carriers | |
RIK0235A | Matrix Fixture, Benchtop Rear Resource Mounting Plate | $70 | 0 | Fixture Sides | |
RIK0234A | Matrix Fixture, Benchtop Side Resource Mounting Plate | $30 | 0 | Fixture Sides | |
RIK0233A | Matrix Fixture, Side Plate, Bench-top | $1,000 | 0 | Fixture Sides | |
RIK0232A | Adapter, FR Softdock, SMA(f)-(f) Bulkhead | $40 | - | Fixture Cables | |
RIK0231A | RF Cable, Conform, 90° SSMP(f)-90° SSMP(f), 5" | $250 | - | Fixture Cables | |
RIK0230A | RF Cable, Conform, 2.9K(m)-90° MMPX(m), 16" | $270 | - | Fixture Cables | |
RIK0229A | Soft Dock Resource Plate, D-Sub 50 pin | $60 | - | Fixture Resource Plates | |
RIK0228A | Soft Dock Resource Plate, Single Blank | $20 | - | Fixture Resource Plates | |
RIK0227A | Soft Dock Resource Plate, Double Blank | $20 | - | Fixture Resource Plates | |
RIK0226A | Soft Dock Resource Plate, BNC x2 | $40 | - | Fixture Resource Plates | |
RIK0225A | Soft Dock Resource Plate, SMA x 8 | $40 | - | Fixture Resource Plates | |
RIK0224A | Soft Dock Resource Plate, DVB/High Power | $40 | - | Fixture Resource Plates | |
RIK0223A | Soft Dock Resource Plate, DC Pogo Board | $250 | - | Fixture Resource Plates | |
RIK0222A | Soft Dock Resource Plate, Serial Number (x4) | $210 | - | Fixture Resource Plates | |
RIK0220A | Switch Module, Dual SPDT High TOIP 6GHz | $770 | 0 | Fixture Modules | |
RIK0218A | Switch Module, Dual 6 GHz High TOIP SP4T | $1,400 | 0 | Fixture Modules | |
RIK0217C | Matrix RF Insert, 20 GHz SSMP (Fixture Side) | $750 | - | Fixture Inserts | |
RIK0217B | Matrix Fixture Insert, 20 GHz SSMP (Fixture Side) | $750 | - | Fixture Inserts | |
RIK0217A | Matrix Fixture Insert, 20 GHz SSMP (Fixture Side) | $720 | 0 | Fixture Inserts | |
RIK0216A | Matrix DIB Insert, 20 GHz SSMP DIB Launch (Side A) | $280 | - | Fixture DIB Layer | |
RIK0215A | QuickLock, Pedestal Support | $610 | 14 | Fixture Pedestal Support & Clamps | |
RIK0214B | Matrix Fixture, QuickLock Top Plate | $760 | - | Fixture Top Plates | |
RIK0214A | QuickLock Top Plate, Matrix Fixture | $740 | 0 | Fixture Top Plates | |
RIK0213C | QuickLock, DUT Clamp, Seiko/Epson | $1,140 | 0 | Fixture Pedestal Support & Clamps | |
RIK0213B | QuickLock, DUT Clamp, Seiko/Epson, 8 screw | $810 | 0 | Fixture Pedestal Support & Clamps | |
RIK0213A | QuickLock, DUT Clamp, Seiko/Epson | $780 | 0 | Fixture Pedestal Support & Clamps | |
RIK0212A | Matrix RF Insert, 15 GHz, 3 tab, SMA, QuickLock | $200 | - | Fixture Inserts | |
RIK0211A | Block, RF SMA Bulkhead for AUX ports | $660 | - | Fixture Blocks | |
RIK0210A | RF Cable, Conform, PKZ#12(f)-SMA(m), 8" | $100 | - | Fixture Cables | |
RIK0209A | RF Cable, Conform, .086, 90° SSMP(GPPO)(f)-SMA(m), 9" | $370 | - | Fixture Cables | |
RIK0208A | RF Cable, Conform, .086, SSMP(f)-SMA(m), 7" | $440 | - | Fixture Cables | |
RIK0206A | RF Cable, Flex, MCX(m)-90° MCX(m), 13" | $100 | - | Fixture Cables | |
RIK0205A | TIM Replacement Handle | $410 | 0 | Replacement Parts | |
RIK0204A | Thread-locking fluid, Fixture Assembly (1 tube) | $10 | - | Fixture Accessories | |
RIK0203B | Switch Module, Dual SP4T RF Switch DC - 20GHz | $2,810 | - | Fixture Modules | |
RIK0203A | Dual SP4T RF Switch DC - 20GHz (Single Module) | $2,200 | 0 | Fixture Modules | |
RIK0202A | Block, FIX 65A Carrier & Device Power TIM | $660 | - | Fixture Blocks | |
RIK0201B | Block, FIX to RIFL Carrier, 16" | $470 | - | Fixture Blocks | |
RIK0201A | Block, FIX to RIFL Carrier, 13 Modules | $360 | 0 | Fixture Blocks | |
RIK0200A | Matrix Carrier, RIFL (6KB), 13 Modules | $1,250 | - | Fixture Carriers | |
RIK0199B | SN Chip Wire Length Adjustable 4 Wire | $120 | - | Fixture Accessories | |
RIK0199A | Fixture SN Chip (ESN) with 4-wire Harness (2 ea) | $90 | 0 | Fixture Cables | |
RIK0198B | Block, Waveguide mmWave W12, 8 PKZ | $1,260 | - | Fixture Blocks | |
RIK0198A | Block, Waveguide mmWave Mount | $540 | 0 | Fixture Blocks | |
RIK0197A | RF Cable, Conform, PKZ#12(f)-.085 SMA(m), 11" | $290 | - | Fixture Cables | |
RIK0196A | RF Cable, Conform, PKZ#12(f)-SMA(m), 18" | $320 | - | Fixture Cables | |
RIK0195A | RF Cable, Flex, SMA(m)- MCX(f), 7" | $100 | - | Fixture Cables | |
RIK0194A | RF Cable, Flex, 90° MCX(f)-90° MCX(f), 7" | $130 | - | Fixture Cables | |
RIK0193A | RF Cable, Flex, MCX(f)-MCX(f), 7" | $160 | - | Fixture Cables | |
RIK0192A | DC Jumper Wires, 28AWG, 12" (qty 10) | $170 | 0 | Fixture Cables | |
RIK0191A | DC Jumper Wires, 28AWG, 8" (qty 10) | $170 | - | Fixture Cables | |
RIK0190A | DC Jumper Wires, 28AWG, 4" (qty 10) | $170 | - | Fixture Cables | |
RIK0189A | AC Coax Cables, 1x3 Shielded, Twisted Pair, 16" (qty 2) | $330 | - | Fixture Cables | |
RIK0188A | Fixture Harness 40 cond 18" 2ea. for RI7100A | $50 | 0 | Fixture Cables | |
RIK0187B | Block, Carrier Passive Carrier 18" | $1,190 | 0 | Fixture Blocks | |
RIK0187A | Fixture Power & Control Cassini 12" | $410 | 0 | Fixture Blocks | |
RIK0186A | RI7100A, Fixture VI Harness, 16" | $150 | 0 | Fixture Blocks | |
RIK0185A | Adapter, MCX(m)-SMA(f) | $60 | - | Fixture Cables | |
RIK0184A | RF Cable, Flex, MCX(m)-DIN(f), 15" | $260 | - | Fixture Cables | |
RIK0183A | RF Cable, Flex, SSIS(m)-90° MCX(m), 15" | $190 | - | Fixture Cables | |
RIK0182B | Fixture Side Covers ( Panels / Plates ) for 12 RF size Top plate | $570 | 0 | Fixture Sides | |
RIK0182A | Fixture Side Covers ( Panels / Plates ) for 12 RF size Top plate | $340 | 0 | Fixture Sides | |
RIK0181A | RF Cable, Conform, PKZ#12(f)-90° MMPX(m), 16" | $260 | - | Fixture Cables | |
RIK0180A | RF Cable, Flex, PKZ#12(f)-MCX(m), 18" | $120 | 0 | Fixture Cables | |
RIK0179A | RF Cable, Conform, .086, Spec. #12(f)-SMA(m), 8" | $490 | - | Fixture Cables | |
RIK0178C | Fixture Bottom Plate, Cassini 16 slot, Basic Assembly | $1,140 | 0 | Fixture Bottom Plates | |
RIK0178B | Fixture Bottom Plate, Cassini 16 slot, Basic Assembly | $1,140 | 0 | Fixture Bottom Plates | |
RIK0178A | Fixture Bottom Plate, Cassini 16 slot, Basic Assembly | $890 | 0 | Fixture Bottom Plates | |
RIK0177A | Fixture Bottom Plate, Cassini 8 slot, Basic Assembly | $820 | - | Fixture Bottom Plates | |
RIK0176A | Fixture Bottom Plate, RI7100, Basic Assembly | $2,120 | 0 | Fixture Bottom Plates | |
RIK0175B | Matrix Carrier, RIFL (B7A), 5 Modules + FIX 16" Block | $1,600 | - | Fixture Carriers | |
RIK0175A | Carrier, RIFL (B7A), 5 Modules + FIX Block | $1,540 | - | Fixture Carriers | |
RIK0174A | Fixture SN Chip with Harness (2ea.) | $80 | 0 | Fixture Accessories | |
RIK0173A | Foot Stop AUX rack | $170 | 0 | Replacement Parts | |
RIK0172A | RF Cable, Semi-Rigid, PKZ#12(f)-K(m), 12" | $320 | - | Fixture Cables | |
RIK0171A | RF Cable, Conform, 2.9K(m)-90° MMPX(m), 14" | $300 | - | Fixture Cables | |
RIK0170A | RF Cable (Coax,Confrm,#12F special-SMAM,8") QTY 1 | $240 | 0 | Fixture Cables | |
RIK0169B | RF Cable, Conform, PKZ#12(f)-PKZ#12(f), 8" | $300 | - | Fixture Cables | |
RIK0169A | RF Cable, Conform, PKZ#12(f)-PKZ#12(f), 8" | $170 | 0 | Fixture Cables | |
RIK0168A | Block, RF Block, 16 PKZ | $330 | - | Fixture Blocks | |
RIK0167B | Block, 40 GHz RF TIM, Cal/Diag | $1,080 | - | Fixture Blocks | |
RIK0167A | Block, 40GHz RF TIM, Cal/Diag | $1,080 | 0 | Fixture Blocks | |
RIK0166B | Block, FIX Pwr, Cbits and S/N pins (2 rows, No RIFL) | $460 | - | Fixture Blocks | |
RIK0166A | Block, FIX Pwr, Cbits and Serial Number (2 rows) | $260 | 0 | Fixture Blocks | |
RIK0165A | Fixture Docking Ears - Intest Interface (1 pair) | $1,930 | 0 | Fixture Docking | |
RIK0164A | Matrix Fixture, Side Plates, Large Quad | $920 | - | Fixture Sides | |
RIK0163A | Matrix Fixture, Basic Top Plate | $1,040 | 0 | Fixture Top Plates | |
RIK0162A | USE 178A++ - Cassini 16-Slot Diagnostic/Interface Plate | $4,090 | 0 | Fixture Accessories | |
RIK0161A | Block, RF Assembly 16RF with 4 Cables - Cassini | $630 | 0 | Fixture Blocks | |
RIK0160A | Carrier, Active (6KA), 13 Modules, Matrix | $780 | 0 | Fixture Carriers | |
RIK0159A | Matrix Fixture, Sides 8 Slot / 7100 | $1,000 | 0 | Fixture Sides | |
RIK0158A | RF Cable Kit (#12F - #12F 8" Conformable, 6 Pieces) | $990 | 0 | Fixture Cables | |
RIK0157A | DC Jumper Wires, 28AWG 18" (40 pieces) | $510 | - | Fixture Cables | |
RIK0156A | DIB RF Launch, 40 GHz, MMPX SMT w/ Saddle Clamp | $230 | - | Fixture DIB Layer | |
RIK0155B | RF Cable Kit (16" #12F-MMPX, Flex, 90° 2 Cables) | $280 | 0 | Fixture Cables | |
RIK0155A | RF Cable Kit (14" #12F-MMPX, Flex, Rt Angle 2 Cables) | $470 | 0 | Fixture Cables | |
RIK0154A | RF Cable, Conform, PKZ#12(f)-90° MMPX(m) ,16" (qty 5) | $710 | 0 | Fixture Cables | |
RIK0153B | Matrix Fixture, Side Plates, Cassini 16 Slot | $1,030 | - | Fixture Sides | |
RIK0153A | Matrix Top Plate Assembly Cassini 16 (w/ sides & carrier) - EXPIRED | $2,160 | 0 | Fixture Top Plates | |
RIK0152B | Matrix Fixture, Quad Top Plate, Pedestal Support & Clamp | $1,650 | 0 | Fixture Top Plates | |
RIK0152A | Fixture Top Plate, Matrix Quad, Intest Compatible | $1,650 | 0 | Fixture Top Plates | |
RIK0151B | Cassini 16-Slot Diag/Cal Interface Kit | $7,500 | 0 | Calibration Tools | |
RIK0151A | Cassini 16-Slot Interface Kit | $4,050 | 0 | Calibration Tools | |
RIK0150A | 20/40 GHz Calibration Standards Kit | $48,730 | 0 | Calibration Tools | |
RIK0149A | 18 GHz Calibration Standards Kit | $38,890 | 0 | Calibration Tools | |
RIK0148A | Digital Coax Cables, 1x2 , (qty 5) | $230 | - | Fixture Cables | |
RIK0147A | Module, Digital 40 Pogo Pins | $580 | - | Fixture Modules | |
RIK0146B | Block, Digital TIM, 40 Pins with Cables | $1,300 | - | Fixture Blocks | |
RIK0146A | Block, Digital TIM, 40 Pins with Cables | $1,370 | 0 | Fixture Blocks | |
RIK0145A | Matrix Fixture, Cassini 8 TIM Bottom Plate Assembly | $3,390 | 0 | Fixture Bottom Plates | |
RIK0144A | Block, Device Power TIM, DC Pins (2x5 x7) | $960 | 0 | Fixture Blocks | |
RIK0143B | Use RI0K168A - RF Block Assem 16RF, Fixed Cabling - Cassini | $420 | 0 | Fixture Blocks | |
RIK0143A | Use RIK0168A - RF Block Assembly 16RF (Fixed) | $380 | 0 | Fixture Blocks | |
RIK0142A | Block, Digital TIM, 120 Pins with Cables | $2,680 | 0 | Fixture Blocks | |
RIK0141A | Block, Digital TIM, 80 Pins with Cables | $2,520 | 0 | Fixture Blocks | |
RIK0138A | Matrix RF Insert, 6 GHz, Dual MCX | $990 | - | Fixture Inserts | |
RIK0137B | Matrix Digital Insert, 20 pin, Coax Ribbon | $730 | - | Fixture Inserts | |
RIK0137A | Matrix Digital Insert, 20 pin, Coax Ribbon | $780 | 0 | Fixture Inserts | |
RIK0136A | Matrix Fixture Insert, Rail Dual DC Pogo, 2x16pin | $330 | 0 | Fixture Inserts | |
RIK0135C | Matrix DC Insert, 16 pin, Shroud, 0.02 in Taller | $380 | - | Fixture Inserts | |
RIK0135B | Matrix DC Insert, 16 pin, with Shroud | $210 | 0 | Fixture Inserts | |
RIK0135A | Matrix DC Insert, 16 pin | $210 | - | Fixture Inserts | |
RIK0134B | Fixture Top Plate, Matrix Quad Site | $1,360 | 0 | Fixture Top Plates | |
RIK0134A | Matrix Fixture, Top Plate Assembly Quad Site (w/Sides) | $4,000 | 0 | Fixture Top Plates | |
RIK0133A | Matrix Fixture, 16 TIM Bottom Plate Assy. Kit | $3,560 | 0 | Fixture Bottom Plates | |
RIK0132A | Coax Driver Buffer Module | $1,640 | 0 | Fixture Modules | |
RIK0131A | Cassini RF (BVD) - Dual SMA, 48" | $980 | - | Replacement Parts | |
RIK0130A | Cassini 8-Slot Interface Kit | $5,450 | - | Calibration Tools | |
RIK0129A | Fixture DUT Clamp Kit, 20RF Fixture Seiko Epson | $790 | 2 | Fixture Pedestal Support & Clamps | |
RIK0128A | DC Jumper Wires, 28AWG, 12"+18" (qty 30&30) | $730 | 0 | Fixture Cables | |
RIK0127A | High Speed Digital Scan Module Kit | $6,400 | 0 | Fixture Modules | |
RIK0126B | RI7100A Virtual Workstation & OS License | $1,940 | - | Replacement Parts | |
RIK0126A | Cassini Virtual Workstation & OS License | $1,585 | - | Replacement Parts | |
RIK0125A | Cassini Installation & Calibration | $10,500 | - | Services | |
RIK0124G | Power Cord, 3-Pin IP44 | $110 | 0 | Replacement Parts | |
RIK0124F | Power Cord, C19 - Free, Stripped End (No Plug) | $70 | 0 | Replacement Parts | |
RIK0124E | Power Cord, NEMA SI32, ISRAEL | $160 | 0 | Replacement Parts | |
RIK0124D | Power Cord, NEMA CEE7-7, EUROPE | $80 | 0 | Replacement Parts | |
RIK0124C | Power Cord, NEMA BS546, CHINA | $120 | 0 | Replacement Parts | |
RIK0124B | Power Cord, NEMA L6-20 | $100 | 0 | Replacement Parts | |
RIK0124A | Power Cord, NEMA 5-20, USA, Taiwan | $60 | - | Replacement Parts | |
RIK0123A | Matrix Fixture, Single DUT Clamp & Support Kit | $1,580 | 0 | Fixture Pedestal Support & Clamps | |
RIK0122A | Use 145A - Matrix Fixture, Small Cassini Bottom Plate | $3,390 | 0 | Fixture Bottom Plates | |
RIK0121A | Matrix Fixture, RI7100 Bottom Plate Assembly | $4,120 | 0 | Fixture Bottom Plates | |
RIK0120B | Matrix Fixture, Top Plate | $830 | 0 | Fixture Top Plates | |
RIK0120A | Matrix Fixture, Top Plate Assy w/ Carrier & Sides | $1,860 | 0 | Fixture Top Plates | |
RIK0119A | Matrix Fixture, Dual DUT Clamp & Support Kit | $1,830 | 5 | Fixture Pedestal Support & Clamps | |
RIK0118A | Matrix RF Insert, 12 GHz, Center, 1 Tab, Dual SMA | $440 | - | Fixture Inserts | |
RIK0117A | Matrix RF Insert, 10 GHz, Single SMA | $260 | - | Fixture Inserts | |
RIK0116A | Matrix Fixture Insert, DC, Rail dual, 2x12 pin | $250 | 0 | Fixture Inserts | |
RIK0115A | Matrix Fixture Insert, single pogo insert, 12 pin | $140 | 0 | Fixture Inserts | |
RIK0114A | Fixture Top Plate, Dual Insert with Dut Clamps | $4,700 | 0 | Fixture Top Plates | |
RIK0113A | WF Cable, Flex, DIN(f)-90° MCX (m), 15" (qty 5) | $1,280 | - | Fixture Cables | |
RIK0112A | Bar Code Scanner, USB | $260 | 0 | Replacement Parts | |
RIK0111A | Load (DUT) Board Evaulation and Repair | $2,060 | 0 | Fixture Repair | |
RIK0110A | Fixture Evaluation and Repair Service | $13,300 | - | Services | |
RIK0109A | RI7100A Gold Support (SU, ME, FRP, TRS, ETS) | $52,300 | - | System Support Options | |
RIK0108A | RI7100A Silver Support Package (SU, ME, FRP, TRS) | $41,000 | - | System Support Options | |
RIK0107A | RI7100A Basic Support Package (SU, ME, FRP) | $31,700 | - | System Support Options | |
RIK0106A | Factory Module Calibration (FMC) - Quick Cal | $1,390 | - | System Support Options | |
RIK0105A | High Pass Filter (1 Module) | $1,860 | 0 | Fixture Modules | |
RIK0104A | Fixture, Cassini 8 Port Engineering | $15,900 | 0 | Fixtures | |
RIK0103C | Use RIK0168A - Cassini RF Block Assembly 16RF | $560 | 0 | Fixture Blocks | |
RIK0103B | Use RIK0168A - Cassini RF Block Assembly 16RF | $560 | 0 | Fixture Blocks | |
RIK0103A | Use RIK0168A - Cassini RF Block Assembly 8RF | $560 | 0 | Fixture Blocks | |
RIK0102A | RF Cable, Semi-Rigid, PKZ#12(f)-PKZ#12(f), 4" (qty 2) | $410 | - | Fixture Cables | |
RIK0101B | RF Cable Kit (18" #12F-MCXM, 6 cables) | $840 | 0 | Fixture Cables | |
RIK0101A | RF Cable Kit (18" #12F-MCXM, 6 cables) | $2,220 | 0 | Fixture Cables | |
RIK0100B | RF Cable, Flex, PKZ#12(f)-MCX(m), 12" (qty 6) | $1,000 | 0 | Fixture Cables | |
RIK0100A | RF Cable Kit (12" #12F-MCXM, 6 cables) | $1,000 | 0 | Fixture Cables | |
RIK0099A | DC Block Pin Repair Kit | $900 | - | Fixture Repair | |
RIK0098A | 8 TIM Cassini Calibration Kit | $28,300 | 0 | Calibration Tools | |
RIK0097A | Cassini Infrastructure Spare Parts (LG & SM) | $27,100 | 0 | Replacement Parts | |
RIK0096A | Fixture, Cassini 8-Port, 20/30RF | $13,300 | 0 | Fixtures | |
RIK0095B | AC Switch Matrix 8x24 | $1,980 | - | Fixture Modules | |
RIK0095A | AC Switch Matrix 8x24 | $1,620 | 0 | Fixture Modules | |
RIK0094A | Fixture Large 30 Coax DUT Clamps, Dual Site | $910 | 8 | Fixture Pedestal Support & Clamps | |
RIK0093A | Fixture Small 12 Coax DUT Clamps, Single Site | $800 | 1 | Fixture Pedestal Support & Clamps | |
RIK0092A | Step Attenuator Module, 0-36db, 4 Step | $2,210 | - | Fixture Modules | |
RIK0091C | Fixture, Pedestal Support 30RF with Pogo Tool | $1,280 | 0 | Fixture Pedestal Support & Clamps | |
RIK0091B | Fixture, Pedestal Support 30RF | $2,760 | 0 | Fixture Pedestal Support & Clamps | |
RIK0091B | Fixture, Pedestal Support 30RF | $2,760 | 0 | Fixture Pedestal Support & Clamps | |
RIK0091A | Fixture, Pedestal Support 30RF | $1,710 | 0 | Fixture Pedestal Support & Clamps | |
RIK0090A | Fixture, Pedestal Support 20RF (Seico Epson) | $2,250 | 1 | Fixture Pedestal Support & Clamps | |
RIK0089A | Switch, 1x8 Terminated (1 Module) | $1,310 | 0 | Fixture Modules | |
RIK0088A | Fixture MUX, 1x32, 2x16 (1 Module) | $1,030 | - | Fixture Modules | |
RIK0087A | Diff. I/O Buffer Module, Advanced High BW | $2,380 | - | Fixture Modules | |
RIK0086A | Delta M1688 Allignment Pins | $100 | - | Fixture Docking | |
RIK0085A | 20 RF Test Fixture Top Plate (Replacement) | $4,960 | 0 | Replacement Parts | |
RIK0084A | Carrier, Active (65A), 20 RF Top Plate | $1,750 | - | Fixture Carriers | |
RIK0083A | Pogo Alignment Tool, 20RF | $160 | 0 | Fixture Repair | |
RIK0082A | 18 GHz Calibration Kit Cal Service | $4,530 | - | Services | |
RIK0081A | Fixture, Bench-Top 20RF, Active Carrier | $6,500 | 0 | Fixtures | |
RIK0080B | RF Cable Kit (15" SSISM to MCX 90°, 6 Cables) | $980 | 0 | Fixture Cables | |
RIK0080A | RF Cable Kit (15" SSISM to MCX, 6 Cables) | $980 | 0 | Fixture Cables | |
RIK0079A | Dual Boot Laptop | $13,380 | 0 | Replacement Parts | |
RIK0078A | Dual Monitor System Controller | $15,400 | 0 | Replacement Parts | |
RIK0077B | Dual Fixture Diff Amp, HS, w/o Comm Mode Cont. | $940 | 0 | Fixture Modules | |
RIK0077A | High BW Diff. I/O Buffer Module | $940 | 0 | Fixture Modules | |
RIK0076A | Fixture Fixed Price Repair | $2,280 | 0 | Fixture Repair | |
RIK0076A | Fixture Fixed Price Repair | $2,280 | 0 | Fixtures | |
RIK0075A | Fixture, Bench-Top Single Site | $4,070 | 0 | Fixture Top Plates | |
RIK0074C | Fixture, 20RF | $10,800 | 0 | Fixtures | |
RIK0074B | Fixture, 20RF | $10,800 | 0 | Fixtures | |
RIK0074A | Fixture, 20 RF (use 74B) | $10,400 | 0 | Fixtures | |
RIK0073A | RF Cable, Conform, 90° MCX(f)-90° MCX(f), 3" (qty 3) | $310 | - | Fixture Cables | |
RIK0072B | RF Cable, Flex, 90° MCX(f)-SMA(m), 5" (qty 6) | $400 | - | Fixture Cables | |
RIK0072A | RF Cable, Flex, 90° MCX(f)-SMA(m), 5" (qty 6) | $660 | - | Fixture Cables | |
RIK0071A | RI7100A Fixture POGO Kit | $170 | 0 | Fixture Repair | |
RIK0070A | Handler Docking Plate | $9,780 | 0 | Fixture Docking | |
RIK0069A | RI Small Handler Dock (Single Site) | $8,700 | 0 | Fixture Docking | |
RIK0068A | Fixture Docking Ears - Standard (1 pair) | $1,770 | - | Fixture Docking | |
RIK0067A | Dut Boards, unpopulated (fab) | $3,090 | - | Fixture Accessories | |
RIK0066A | Dut Boards, custom loading | $6,800 | - | Fixture Accessories | |
RIK0065A | Standard Single Site DUT Board Design | $12,300 | - | Fixture Accessories | |
RIK0064A | International Support Upgrade, 1 Year | $3,360 | - | System Support Options | |
RIK0063B | Engineering Technical Support, 50 hrs (ETS) | $13,800 | - | System Support Options | |
RIK0063A | Engineering Tech. Support Upgrade, 50 Hrs (ETS) | $2,800 | - | Services | |
RIK0062A | Production Technical Support, 1 Year (PTS) | $8,400 | - | System Support Options | |
RIK0061A | Fixture, RI7100A Universal Softdock | $14,000 | 0 | Fixtures | |
RIK0060A | Maintenance Technical Support, 1 Year (MTS) | $11,200 | - | System Support Options | |
RIK0059A | Module, Step Attenuator + LNA, 2.5 GHz | $730 | 0 | Fixture Modules | |
RIK0058B | Switch 6 GHz Dual SPDT (1 Module) | $650 | - | Fixture Modules | |
RIK0058A | Switch 6 GHz Dual SPDT (2 Modules) | $1,300 | 0 | Fixture Modules | |
RIK0057A | Pogo Pin Spares for RI7100A Test Head | $860 | - | Replacement Parts | |
RIK0056B | Switch 6 GHz Dual SP4T (1 Module) | $800 | 0 | Fixture Modules | |
RIK0056A | Switch 6 GHz Dual SP4T (1 Module) | $1,160 | 0 | Fixture Accessories | |
RIK0055A | SPDT High Pass Filter (1 Module) | $1,160 | - | Fixture Modules | |
RIK0054B | Divider 3 GHz/ SPDT Switch (1 Module) | $2,070 | - | Fixture Modules | |
RIK0054A | Divider 3 GHz/ SPDT switch module(1 Module) | $1,160 | 0 | Fixture Accessories | |
RIK0053B | Fixture Cbits Controller (1 Module) | $610 | - | Fixture Modules | |
RIK0053A | Fixture Cbits Controller (2 Modules) | $1,160 | 0 | Fixture Modules | |
RIK0052A | RF Cable Kit (3.4" SSIS(M) to SMA(F) 6 cables) | $940 | 0 | Fixture Cables | |
RIK0051A | RF Cable, Conform, SMA(m)-SMA(m), 11" (qty 5) | $340 | 0 | Fixture Cables | |
RIK0050A | Software Subscription, 1 Year (SU) | $11,500 | - | System Support Options | |
RIK0049A | Delay Line Discriminator Module | $3,580 | 0 | Fixture Modules | |
RIK0048A | System Evaluation, 1 Visit | $12,100 | - | Services | |
RIK0047A | On Site Repair Maintenance, 1 Year (OSM) | $12,110 | - | Services | |
RIK0046A | RI7100A Hardware Repair Labor, 1 Event | $3,230 | - | Services | |
RIK0045A | RI7100A Factory Replacement Parts, 1 yr (FRP) | $22,700 | - | Services | |
RIK0044A | Fast Ship Module Exchange, 1 year (ME) | $11,200 | - | System Support Options | |
RIK0043B | Preventive Maintenance & Cal, 1 visit (PMC) | $9,770 | - | System Support Options | |
RIK0043A | Cassini Calibration & Preventive Maintenance (USA) | $5,990 | - | Services | |
RIK0042C | MTS moved to RIK0060A | $11,200 | - | System Support Options | |
RIK0042B | PTS moved to RIK0062A | $8,400 | - | System Support Options | |
RIK0042A | RI7100A Standard Support Package, 1 yr (PTS,ME,SU) | $29,100 | - | System Support Options | |
RIK0041B | RI7100A Technical and Repair Support, 1 yr (TRS) | $16,890 | - | System Support Options | |
RIK0041A | Repair Support via Phone/Email/Web, 1 yr (PSR) | $9,400 | - | System Support Options | |
RIK0040E | Online Cassini Technician Onboarding | $1,380 | - | Training Courses | |
RIK0040C | Guru Admin Training (Online) | $900 | - | Training Courses | |
RIK0040B | Online Cassini Basic Training | $1,380 | - | Training Courses | |
RIK0040A | Test System Training Class (6 students) | $30,740 | - | Training Courses | |
RIK0039B | High Voltage Buffer Module (1 Module) | $1,420 | 0 | Fixture Modules | |
RIK0039A | High Voltage Buffer Module (1 Module) | $940 | 0 | Fixture Modules | |
RIK0038A | Cassini Diagnostic Training Class per Person | $3,500 | - | Training Courses | |
RIK0037A | Advanced Training per Person | $3,500 | - | Training Courses | |
RIK0036A | RI Signal Generator, 20 GHz | $56,100 | 0 | Replacement Parts | |
RIK0035A | Fixture Top Plate, 12 RFs (DELTA) | $3,580 | 0 | Fixture Accessories | |
RIK0034A | RF Application Kit (LNA, Mixer, IQ Mod & Demod) | $3,910 | 0 | Applications | |
RIK0033B | RF Cable Kit (11" SSISM-SMAM, 5 Cables) | $930 | 0 | Fixture Cables | |
RIK0033A | RF Cable Kit (11" SSIS(M) to SMA, 5 Cables) | $930 | 0 | Fixture Cables | |
RIK0032A | RI7100A Diagnostic kit | $6,400 | 0 | Calibration Tools | |
RIK0031A | Calibration Boards, Multi-site Fixture | $1,764 | 0 | Calibration Tools | |
RIK0030A | Carrier board Pogo alignment tool - RI7100A | $120 | 0 | Fixture Accessories | |
RIK0029B | Fixture, Dual Site 12 RF | $9,000 | 0 | Fixtures | |
RIK0029A | Fixture, Dual Site 12 RF | $8,800 | 0 | Fixtures | |
RIK0028A | Calibration DUT Boards, 12 Port RI7100A Fixture | $5,190 | - | Calibration Tools | |
RIK0027A | RF Cable Kit (SSIS to SMA, 7", 5 Cables) | $860 | 0 | Fixture Cables | |
RIK0026B | 6 GHz RF Switch Modules Dual SPDT (2 ea) | $1,160 | - | Fixture Modules | |
RIK0025A | Daymarc 717 Docking Hardware | $23,500 | 0 | Docking Hardware | |
RIK0024A | RI7100A CAM Assembly (1 Assembly) | $6,500 | 0 | Replacement Parts | |
RIK0023A | RI7100A Calibration Kit | $30,100 | 0 | Calibration Tools | |
RIK0022A | RI7100A Cal Kit **Obsolete** | $11,200 | 0 | Calibration Tools | |
RIK0021A | Fixture Ramps (Gen I cam assembly), 1 pair | $190 | - | Fixture Accessories | |
RIK0020A | Fixture Ramps (Contoured), 1 pair | $850 | 0 | Fixture Accessories | |
RIK0019B | RI7100A System Controller + OS Lic. | $9,400 | 0 | Replacement Parts | |
RIK0019A | RI7100A System Controller w/ Monitor, OS and Lic. | $12,280 | 0 | Replacement Parts | |
RIK0018B | Fixture, RI7100A Engineering | $2,590 | - | Fixture Bottom Plates | |
RIK0018A | Test Fixture Engineering Plate - RI7100 | $1,880 | 0 | Fixture Accessories | |
RIK0017A | High Speed Serial Digital Module Kit (1 Module) | $3,470 | - | Fixture Modules | |
RIK0016A | RI7100A On-site Service Parts Kit | $12,100 | 0 | Replacement Parts | |
RIK0015A | Differential I/O Module Kit (1 Module) | $940 | - | Fixture Modules | |
RIK0014B | Carrier, Active (4VB), RI7100A, 12 RF Top | $4,760 | 0 | Fixture Carriers | |
RIK0014A | Active Carrier Assembly Kit (1 Carrier) | $1,410 | 0 | Fixture Accessories | |
RIK0013B | Carrier, Passive w/o harness, RI7100A, 12 RF Top | $660 | 0 | Fixture Carriers | |
RIK0013A | Passive Carrier Assembly, RI7100A | $660 | 0 | Fixture Accessories | |
RIK0012B | RI7100A 12 RF Fixture Top Plate | $3,800 | 0 | Fixture Top Plates | |
RIK0012A | Test Fixture Top Plate Assembly 12RF | $3,120 | 0 | Fixtures | |
RIK0011C | Universal Test Top Plate | $0 | 0 | Fixture Accessories | |
RIK0011B | Universal Test Fixture - RI7100 | $13,500 | 0 | Fixtures | |
RIK0011A | Universal Fixture Top Plate | $0 | 0 | Fixture Accessories | |
RIK0010A | Fixture Top Plate, old | $0 | 0 | Fixtures | |
RIK0009A | Adapter, SMA(f)-SSIS(m) (qty 5) | $1,160 | - | Fixture Cables | |
RIK0008A | Adapter, SMA(f)-MCX(f) (qty 5) | $510 | 0 | Fixture Cables | |
RIK0007B | DC Jumper Wires, 28AWG 4"+8"+12" (qty 20 ea) | $700 | - | Fixture Cables | |
RIK0007A | DC Jumper Wires, 28AWG, 4"+8" (qty 20+20) | $910 | 0 | Fixture Cables | |
RIK0006B | 2.5 GHz RF Switch Modules Dual SPDT (2 ea) | $1,160 | 0 | Fixture Modules | |
RIK0006A | Switch 2.5 GHz Dual SPDT (2 ea) | $1,040 | 0 | Fixture Modules | |
RIK0005A | RF Cable, Conform, 90° MCX(f)-90° MCX(f), 7" (qty 5) | $430 | 0 | Fixture Cables | |
RIK0004B | Test Fixture Bottom Assembly | $2,840 | 0 | Fixture Bottom Plates | |
RIK0004A | Test Fixture Bottom Assembly | $2,590 | 0 | Fixture Bottom Plates | |
RIK0003A | Fixture Bottom Assy for GEN I and GEN II | $1,890 | 0 | Fixtures | |
RIK0002A | WF Cable, Flex, DIN(f)-90° MCX(m), 12" (qty 5) | $510 | 0 | Fixture Cables | |
RIK0001B | RF Cable Kit (12" SSIS(M) to MCX 90, 6 cables) -> use 80B | $940 | 0 | Fixture Cables | |
RIK0001A | RF Cable Kit (12" SSISM to MCX 90, 6 Cables) | $940 | 0 | Fixture Cables | |
RI86* | Template | - | CASSINI | ||
RI8612A | Device Power Plus (DP,VM,VCC) TIM | - | CASSINI | ||
RI8611A | Cassini V93K Infrastructure | - | CASSINI | ||
RI8610A | Test Set, 86-110 GHz RR-10, 2 Ports 1 Path TIM | - | CASSINI | ||
RI8609A | Cassini System Controller, Secure | - | CASSINI | ||
RI8608A | Cassini System Controller, Linux | - | CASSINI | ||
RI8607A | Test Set, 2-50 GHz, SSMP#12, 2 Port TIM | - | CASSINI | ||
RI8606A | Infrastructure - Cassini SPYDER | - | CASSINI | ||
RI8605A | Source Switch 2x8, 20 GHz TIM | - | CASSINI | ||
RI8604A | Test Set, 70-86 GHz, RR-12, 2 Ports 1 Path TIM | - | CASSINI | ||
RI8603A | Power Amplifier, Generic TIM | - | CASSINI | ||
RI8602A | RF Measure, 71-86GHz Mixer (IF required), WR12 | - | CASSINI | ||
RI8601A | Source, 71-86GHz Mixer (IF required), WR12 | - | CASSINI | ||
RI8599A | Cassini 16 Development UI with Adjustable Arms | - | CASSINI | ||
RI8597A | Cassini 16 Development Desktop User Interface | - | CASSINI | ||
RI8596A | RF Measure, 25 GHz DSP Receiver w/ LO TIM | - | CASSINI | ||
RI8595B | Power Amplifier, 0.7-6 GHz, 20W Max TIM | - | CASSINI | ||
RI8595A | Power Amplifier TIM, 0.7-2.7 GHz, 30W Nominal | - | CASSINI | ||
RI8594B | Time Domain Meas. (Waveform + LNC) TIM | - | CASSINI | ||
RI8594A | Time Domain Meas. (HP Waveform) + Low Noise Clk | - | CASSINI | ||
RI8593A | EPC, Cassini Spyder Controller TIM | - | CASSINI | ||
RI8592A | Power Amplifier TIM, 0.7-2.7GHz, 16W Nominal | - | CASSINI | ||
RI8591A | Infrastructure - Cassini SPYDER, 16 TIM Slots | - | CASSINI | ||
RI8590A | Ground Isolator for Handler Pods | - | CASSINI | ||
RI8589D | High Power Supply/Pulser TIM | - | CASSINI | ||
RI8589C | High Power Supply/Pulser TIM | - | CASSINI | ||
RI8589B | High Power Supply/Pulser TIM | - | CASSINI | ||
RI8589A5 | High Power Supply/Pulser TIM | - | CASSINI | ||
RI8589A | High Power Supply/Pulser TIM | - | CASSINI | ||
RI8588A | Test Set - 1 Port, 68-76 GHz WR-12 TIM | - | CASSINI | ||
RI8587A | RF Measure - 20 GHz Receiver w/ DSP TIM (Req. LO) | - | CASSINI | ||
RI8586A | Source, 25 GHz Microwave Signal Generator TIM | - | CASSINI | ||
RI8585A | Time Domain Meas. (Hi Perf Waveform) + Low Noise Clk | - | CASSINI | ||
RI8584A | Auxiliary Instrument Rack TALL (Custom) | - | CASSINI | ||
RI8583A | Cassini 16 Production Touchscreen Monitor & Arm | - | CASSINI | ||
RI8582A | Testset - 2 Port 1-Path, 4-40.5 GHz, w/ NF | - | CASSINI | ||
RI8581A | RF Measure - 20 GHz Receiver TIM, non-DSP (Req.LO) | - | CASSINI | ||
RI8580B | Test Set, 50-70 GHz, RR-15, 2 Ports 1 Path TIM | - | CASSINI | ||
RI8579B | GPIB Prober POD, Isolated | - | CASSINI | ||
RI8579A | GPIB Prober Card | - | CASSINI | ||
RI8578A | Digital Advanced Pins | - | CASSINI | ||
RI8577A | Combiner with Amp/Attenuator, 20 GHz TIM | - | CASSINI | ||
RI8576B | Auxiliary Instrument Rack (Custom) | - | CASSINI | ||
RI8576A | Auxiliary Instrument Rack - OLD Short (Custom) | - | CASSINI | ||
RI8575A | Phase Noise Measure, 16 GHz TIM | - | CASSINI | ||
RI8574A | Cassini System Controller, ArcaOS EPC TIM | - | CASSINI | ||
RI8573A | Test Set - 1 Port, 50-58 GHz WR-15 TIM | - | CASSINI | ||
RI8572A | Time Domain Measurement (HP Waveform) | - | CASSINI | ||
RI8571A | Testhead 16 Slot SAC16 | - | CASSINI | ||
RI8570A | EPC, Windows for DUT Control | - | CASSINI | ||
RI8569A | Rolling Workstation Cart | - | CASSINI | ||
RI8568D | Infrastructure - Cassini 16 | - | CASSINI | ||
RI8568C | Infrastructure - Cassini 16 | - | CASSINI | ||
RI8568B | Infrastructure - Cassini 16 | - | CASSINI | ||
RI8568A | Infrastructure - Cassini 16 | - | CASSINI | ||
RI8567B | Test Set and RF Measure, 2 Port, 6/12 GHz TIM | - | CASSINI | ||
RI8567A | Testset and RF Measure - 2 Port, 6 GHz TIM | - | CASSINI | ||
RI8566A | 4 Source Combiner with Source - 20 GHz | - | CASSINI | ||
RI8565A | Testset - 4 Ports, 20 GHz with Pulse | - | CASSINI | ||
RI8564C | Testset - 1 Port, 71-86 GHz WR-12 TIM | - | CASSINI | ||
RI8564B | Testset - 1 Port, 75-81 GHz WR-12 TIM | - | CASSINI | ||
RI8564A | Testset - 1 Port, 77 GHz Test Head | - | CASSINI | ||
RI8563D | Test Set, 4-40.5 GHz, 2 Ports 1 Path TIM | - | CASSINI | ||
RI8563C | Test Set - 4-40.5 GHz, 2 Ports 1 Path TIM | - | CASSINI | ||
RI8563B | Testset - 2 Port 1-Path, 4-40.5 GHz | - | CASSINI | ||
RI8563A | Testset - 2 Port 1-Path, 20-40 GHz | - | CASSINI | ||
RI8562A | I/Q Source Amp Combiner | - | CASSINI | ||
RI8561A | Video Analyzer | - | CASSINI | ||
RI8560A | Cassini Dual Source/Amp Combiner | - | CASSINI | ||
RI8557A | Infrastructure - Large Cassini | - | CASSINI | ||
RI8556B | Infrastructure - Small Cassini | - | CASSINI | ||
RI8555A | Source - 6 GHz Source with Amp Attenuator | - | CASSINI | ||
RI8554A | Source - 20 GHz Source with Amp Attenuator | - | CASSINI | ||
RI8553A | RF Measure - 20 GHz Receiver (& RecLO) | - | CASSINI | ||
RI8552B0 | Handler Interface Pod - GPIB (Isolated) | - | CASSINI | ||
RI8552B | Handler Interface Pod - GPIB (Isolated) | - | CASSINI | ||
RI8552A | Handler Interface Pod - GPIB | - | CASSINI | ||
RI8551A | EPC (Embedded PC), Controller for Cassini Sm/Lg | - | CASSINI | ||
RI8549A | Testhead 8 Slot RI7100C | - | CASSINI | ||
RI8547A | Testset - 2 Port, 6 GHz Test Head | - | CASSINI | ||
RI8546C | Device Power (DP,VM,DB,VI,VCC) TIM | - | CASSINI | ||
RI8546B | Device Power Module (DP,VM,DB,VI,VCC) | - | CASSINI | ||
RI8546A | Device Power Module (DP,VM,DB,VI,VCC) | - | CASSINI | ||
RI8545C | Test Set, 20 GHz, 4 Port TIM | - | CASSINI | ||
RI8545B | Testset - 4 ports, 20 GHz Test Head | - | CASSINI | ||
RI8545A | Testset - 4 ports, 12 GHz Test Head | - | CASSINI | ||
RI8542A | Low Phase Noise Source and Measure, 6 GHz | - | CASSINI | ||
RI8536A0 | Source: Amp Attenuator | - | CASSINI | ||
RI8536A | SmCassini Src Amp Atten | - | CASSINI | ||
RI8535B4 | 40 Pin FSPU Digital TIM | - | CASSINI | ||
RI8535B2 | Universal Digital, 20 Pins TIM | - | CASSINI | ||
RI8535B1 | Universal Digital, 40 Pins TIM | - | CASSINI | ||
RI8535B0 | 80 Pin FSPU Digital TIM | - | CASSINI | ||
RI8535B-80 | 80 Pin FSPU Digital TIM | - | CASSINI | ||
RI8535B-40 | 40 Pin FSPU Digital TIM | - | CASSINI | ||
RI8535B-20 | 20 Pin FSPU Digital TIM | - | CASSINI | ||
RI8535B-120 | 120 Pin FSPU Digital TIM | - | CASSINI | ||
RI8535B | Universal Digital, 80 Pins TIM | - | CASSINI | ||
RI8535A | FSPU Digital TIM (40/80/120) | - | CASSINI | ||
RI8528B | RF Measure - 20 GHz Receiver | - | CASSINI | ||
RI8528A | RF Measure - 20 GHz Receiver | - | CASSINI | ||
RI8521C | Time Domain Measurement (Waveform) | - | CASSINI | ||
RI8521B | Time Domain Measurement (Waveform) | - | CASSINI | ||
RI8521A | Time Domain Measurement (Waveform) | - | CASSINI | ||
RI8517A | Handler Interface Pod - Parallel | - | CASSINI | ||
RI8516B | Handler Interface Pod - Serial with Opto-Isolation | - | CASSINI | ||
RI8508C | Source, 6 GHz Microwave Signal Generator TIM | - | CASSINI | ||
RI8508B | 6 GHz Digitally Modulated Signal Generator TIM | - | CASSINI | ||
RI8508A | 6 GHz Digitally Modulated Signal Generator TIM | - | CASSINI | ||
RI8502B0 | GPIB Instrument Pod I/0 (RIFL II) Isolated | - | CASSINI | ||
RI8502B | GPIB Instrument Pod I/0 (RIFL II) Isolated | - | CASSINI | ||
RI8502A | GPIB Instrument Pod I/0 (RIFL II) | - | CASSINI | ||
RI8002A | RF Pulse Profiling | - | CASSINI | ||
RI8001A | High Power X Band Amplifier Module | - | CASSINI | ||
RI7725C | Source - 20 GHz Microwave Signal Generator | - | CASSINI | ||
RI7725B | Source - 20 GHz Microwave Signal Generator | - | CASSINI | ||
RI7725A | Source - 20 GHz Microwave Signal Generator | - | CASSINI | ||
RI7710G | RF Signal Generator | - | RI7100A | ||
RI7710A | RF Signal Generator | - | RI7100A | ||
RI7323A | RF Measure - 20 GHz Receiver | - | CASSINI | ||
RI7269A | Src 1/2 Combiner, Aux2 in, Dual 6GHz Amps, 3db Pad | - | CASSINI | ||
RI7261A | Source 1/2 combiner module, Aux2 in, No Amps | - | CASSINI | ||
RI7260D | Source 1/2 combiner module, Aux2 in, Dual 6GHz Amps | - | CASSINI | ||
RI7260B | Source 1/2 combiner module, Aux2 in, Dual 6GHz Amps | - | CASSINI | ||
RI7260A | Source 1/2 combiner module, Aux2 in, Dual 6GHz Amps | - | CASSINI | ||
RI7100A_RITS | Requires RI7100A Fixture interface | - | RITS | ||
RI7100A | RFIC ATE System | - | System | ||
PTS | Production Technical Support - 1 Year | - | RI7100A | ||
PSR | Phone Support for Service & Repair - 1 Year | - | RI7100A | ||
PMPC | Preventive Maintenance & Calibration - 1 Visit, RI7100A | - | RI7100A | ||
PA-CASSINI | Power Amplifiers | Application | |||
OSR | On Site Repair - 1 Year | - | RI7100A | ||
MR5CCB1A | Guru Server Rack (KVM, Switch,Routing) | - | GURU-SRV | ||
MEMS-CASSINI | RF MEMS Devices | Application | |||
ME | Fast Ship Module Exchange - 1 year | - | RI7100A | ||
GURU-SU | Software Updates for Guru System, Additional Year | - | GURU-SRV | ||
GURU-SRV | Guru Server and 1 Yr Support | System | |||
GURU-HW | Hardware Warranty Extension for Guru System, Additional Year | - | GURU-SRV | ||
GAN-CASSINI | GaN Devices | Application | |||
FRP | Factory Replacement Parts - 1 year | - | RI7100A | ||
FIXTURE | Fixture - the Custom Testhead | - | CASSINI | ||
ETS | Engineering Technical Support Upgrade - 50 hrs | - | CASSINI | ||
E-W | Extended Warranty | - | |||
E | Engineering Technical Support (50 Hrs) | - | CASSINI | ||
CUSTOM | Co-development with Customer IP | - | CASSINI | ||
CASSINI_8 | Requires CASSINI TIMs & 8 port Fixture interface | - | RITS | ||
CASSINI_16 | Requires CASSINI 16 TIMs w/ 16 port Fixture Interface | - | RITS | ||
CASSINI | Cassini Modular Automated Test Equipment | 2 | System | ||
CAS004A | System Integration of TIMs and Cal Fixture | - | CASSINI | ||
BACK-CASSINI | Base station or Backhaul (High Power) | Application | |||
AUTO-CASSINI | Automotive Radar | Application | |||
5G-CASSINI | 5G Devices | - | Application | ||
4G-CASSINI | 4G (LTE, WiMAX) Devices | Application | |||
038A | Guru Client | - | RI7100A | ||
037A | Low Loss for Source1/Support for 2 Auxillary Inputs | - | RI7100A | ||
036A | DPVP (Parametric Measure for DP Lines) | - | RI7100A | ||
035A | Parallel Port (for local Printer) | - | RI7100A | ||
034A | VCC7 and VCC8 | - | RI7100A | ||
033A | LRM On-Wafer Calibration Support | - | RI7100A | ||
032A | Add Counter/Timer to H.S. Dual Digitizer | - | RI7100A | ||
031A | Assurance of Quality (AOQ) Test Methodology | - | RI7100A | ||
030A | 230V 50-60 Hz Single Phase (International) | - | RI7100A | ||
029A | High Speed Dual Digitizer Upgrade | - | RI7100A | ||
028A | Source 2 routed to RF8 | - | RI7100A | ||
027A | Bar Code Scanner | - | RI7100A | ||
026A | High Speed Dual Channel ARB Upgrade | - | RI7100A | ||
025 | Extend Frequency Range to 12 GHz | - | RI7100A | ||
024 | CIM Cell Interface Software | - | RI7100A | ||
023 | Bit Error Rate (BER) Measurement Capability | - | RI7100A | ||
022 | Low Phase Noise Receiver LO Upgrade | - | RI7100A | ||
021 | Database Server System | - | RI7100A | ||
020 | Source Code for Test System Software | - | RI7100A | ||
019 | 2nd Mixer LO Stimulus Source (RF Source 4) | - | RI7100A | ||
018 | High RF Output Pwr and RF Atten for Src 3 | - | RI7100A | ||
017 | On-site Service Parts Kit | - | RI7100A | ||
016 | Dual RF Atten & Combiner Module Src 3 & 4 | - | RI7100A | ||
015 | Ping Pong Multi-site Testing | - | RI7100A | ||
014 | Extend Frequency Range to 20 GHz | - | RI7100A | ||
013 | Additional High Current Bias Supply Lines | - | RI7100A | ||
012 | Extended Low Current Capability for DBVP | - | RI7100A | ||
011R5 | 6 GHz Digital Modulation Signal Generator | - | RI7100A | ||
011R4 | 4.4 GHz Digital Modulation Signal Generator | - | RI7100A | ||
011B | 6.0 GHz Digital Modulation Generator | - | RI7100A | ||
011A | 2.75 GHz Digital Modulation Signal Generator | - | RI7100A | ||
010 | Adjacent Channel Power Measurements | - | RI7100A | ||
009 | RF Pulse Profiling/Time Domain | - | RI7100A | ||
008 | High RF Input Power for RF 6 (+40 dBm ) | - | RI7100A | ||
007 | High RF Output Power for Primary RF Src | - | RI7100A | ||
006B | Frequency & Phase Modulation On Src 1 | - | RI7100A | ||
006A | Ampl. & Freq. Modulation On Src 1 | - | RI7100A | ||
006 | Ampl. Freq. & Phase - RI7710G Src | - | RI7100A | ||
005 | Time Domain Capability | - | RI7100A | ||
004 | Mixer LO Stimulus Source (RF Source 3) | - | RI7100A | ||
003 | Intermod Measurement Capability (incl. RF Source 2) | - | RI7100A | ||
002 | Wafer Test Executive | - | RI7100A | ||
001 | Production Test Options (incl. parallel handler pod) | - | RI7100A |
Item has been added to cart. Subtotal $200.
