Matrix Fixture, Basic Top Plate
Standard Matrix Fixture (Single or Dual Site)
Part Number: RIK0163A
In Stock: 0
Estimated Restocking Time: 4-6 weeks
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.

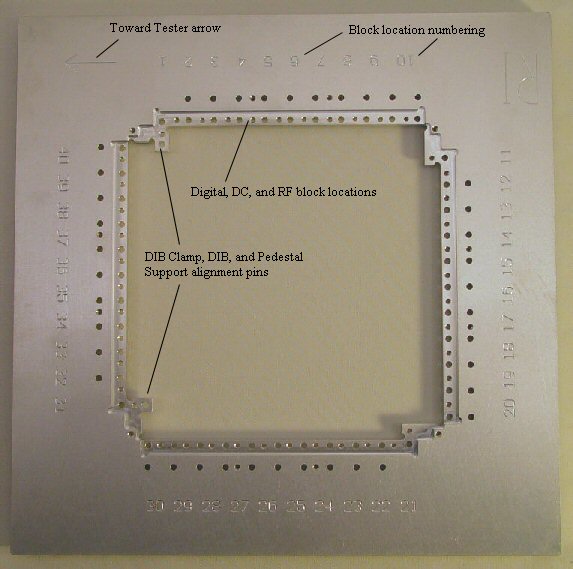

Standard Matrix Fixture Top Plate.
Suitable for single or dual site DIB layouts.
Not compatible with QuickLock DUT Clamp or Pedestal Support.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | B | ARY3EF5A | 1 | RIK0163A Label Packaging.PDF (sheet of 6) | Dcmnt | |
| 2 | S3 | MGZ88J1A | 1 | Standoff, 4-40 x 3/8, M/F 3/16, Hex, SS | Hrdwr | |
| 3 | A | MH3FNL1A | 16 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | |
| 4 | A | MNBP4W6A | 1 | ASSY DOC RIK0163A | Dcmnt | |
| 5 | A | MRY2Z71A | 1 | Packaging Box, 12.5" X 12.5" Multi Depth .5" and 1" | Sppls | |
| 6 | A | W1MFCPNA | 1 | Label, Fixture Orientation arrow | MchFb | |
| 7 | A | W1MFECKG | 1 | TOP FIX DUAL INSERT, Matrix | MchFb |
