This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 03/07/2022.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0333A
Expiration Reason: Ri7100 Limited Support, Cassini is available
Aditional replacements may be found by searching for RIK0159 (change the REV letter) or Matrix Fixture, Sides 8 Slot / 7100.
Matrix Fixture, Sides 8 Slot / 7100
Cassini 8 Slot or RI7100A
Part Number: RIK0159A
In Stock: 0
Estimated Restocking Time: 12+ weeks (limited)

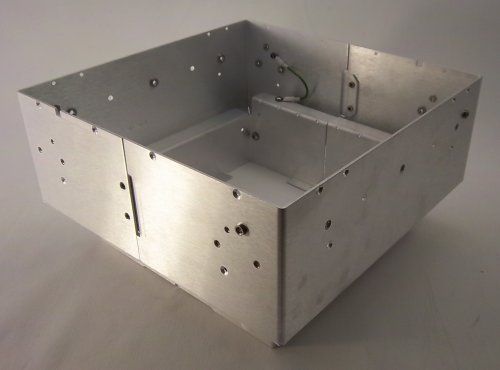

1st image: Metals
2nd image: Hardware
3rd image: Assembled
Matrix Fixture Sides for a 8 Slot Cassini or RI7100A Bottom Plate (RIK0121A)
 | RIK | Desciption | Kit Type | Price | Weight | Modified |
 | 121A | Matrix Fixture, RI7100 Bottom Plate Assembly | Fixtures | $3,500 | 0 | 06/27/2011 01:03:29 AM |
| 122A | Matrix Fixture, Small Cassini Bottom Plate | Fixtures | $2,884 | 0 | 06/27/2011 01:03:29 AM |
| 145A | Matrix Fixture, Cassini 8 TIM Bottom Plate Assembly | Fixtures | $2,884 | 0 | 06/27/2011 01:03:41 AM |
MS84Z84A RIK0159A Assembly Document 2.pdf
MS84Z84A RIK0159A Assembly Drawing.pdf
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M | M5YFXT1A | 2 | HANDLE 4" BLACK | MchCmp | |
| 2 | S2 | M673YF1B | 8 | SCREW, PAN HEAD, 10-32 X 3/8", SS, w/patch | Hrdwr | |
| 3 | C | M6JGN21A | 8 | WASHER, LOCK, #10 INTERNAL TOOTH | Hrdwr | |
| 4 | H | M6JGUB1A | 1 | Nut, 4-40, SS, KEPS | Hrdwr | |
| 5 | J | MAHYV31A | 1 | WASHER, LOCK, #8 SPLIT, SS | Hrdwr | |
| 6 | S4 | MFS3631A | 1 | SCREW FLAT PHIL 4-40 X 7/16" SS 100° | Hrdwr | |
| 7 | E | MGR86B1A | 4 | sandwich mount neoprene DIA5/8 L1/2 F-F 8-32 | MchCmp | |
| 8 | F | MGR86C1A | 8 | Spring .3 OD 75L .035 WIRE | MchCmp | |
| 9 | S5 | MGR8721A | 4 | SCREW, BUTTON HEAD, 8-32x1/4", SS | Hrdwr | |
| 10 | I | MH272Y1E | 1 | Ground Wire 5" (18AWG)* | CblMsc | |
| 11 | S3 | MH3FNL1A | 48 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | |
| 12 | S6 | MJKN071A | 4 | shoulder screw 8-32 3/16DIA 1.25L SS socket head | Hrdwr | |
| 13 | K | MJNFNC2A | 1 | knob retract fixture top* | MscAssy | |
| 14 | G | MKJ4HR1A | 4 | Nyliner 3/16 shaft plate thickness .315 | MchCmp | |
| 15 | B | MS84Z84A | 1 | RIK0159A Assembly Drawing | Dcmnt | |
| 16 | D | W1MFEGJF | 2 | Cover, Lower LONG Fix Dual, 8 SLOT | MchFb | |
| 17 | L | W1MFEGKG | 2 | Cover Upper LONG Fix Dual, 8 SLOT | MchFb | |
| 18 | L | W1MFFHAB | 4 | pin fixture stop DIA .50 X .80L 10-32 | MchFb |
