Engage RF Insert, 50 GHz SSMP-2.4mm Cal
Calibrate Fixture side of resource pair. Requires RIK0316A SSMP Launch. Frequency to 50 GHz to Top Hat. Power up to CW 100 Watts.
Part Number: RIK0375A
In Stock: 0
Estimated Restocking Time: 4-6 weeks
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.

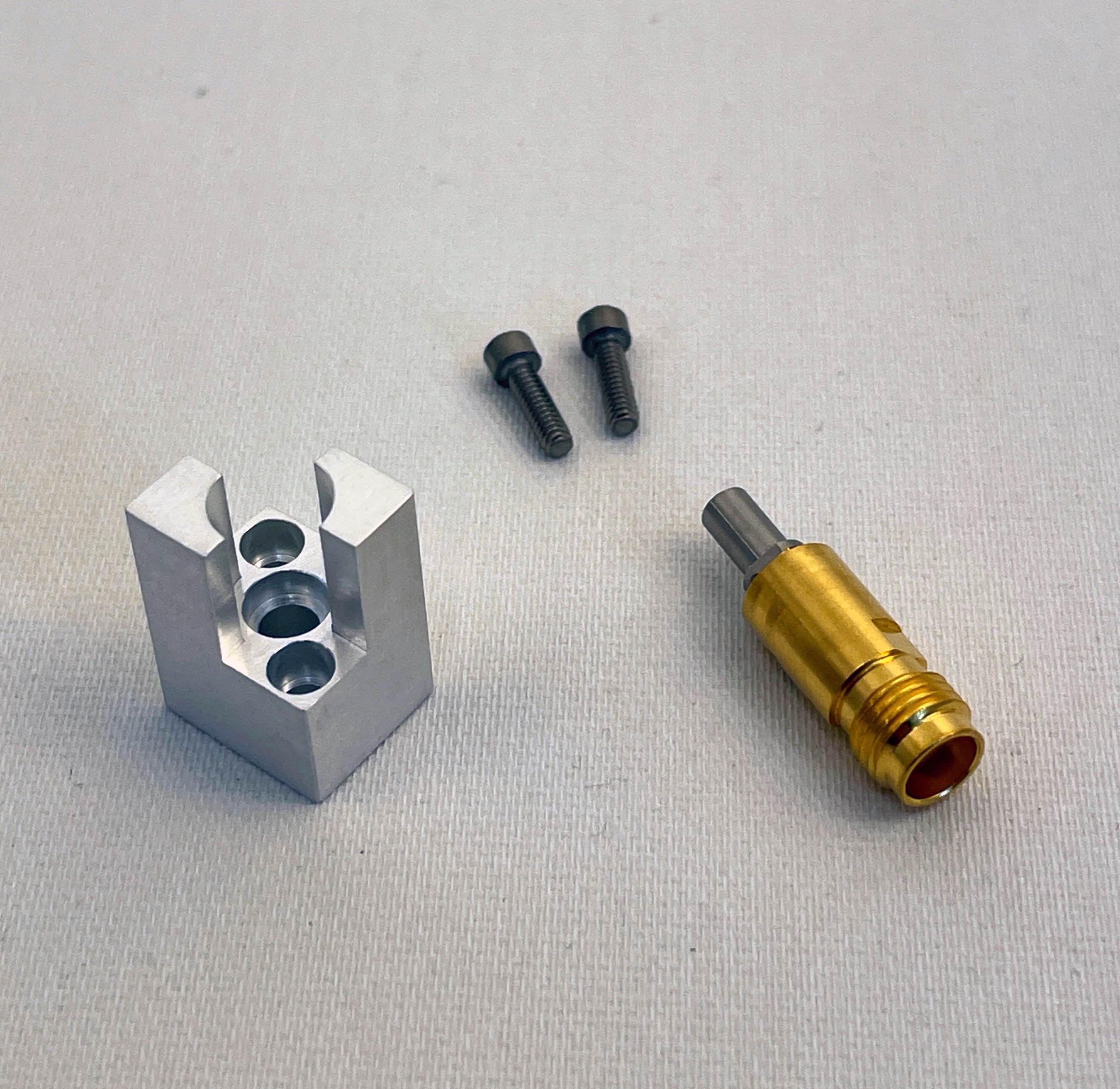

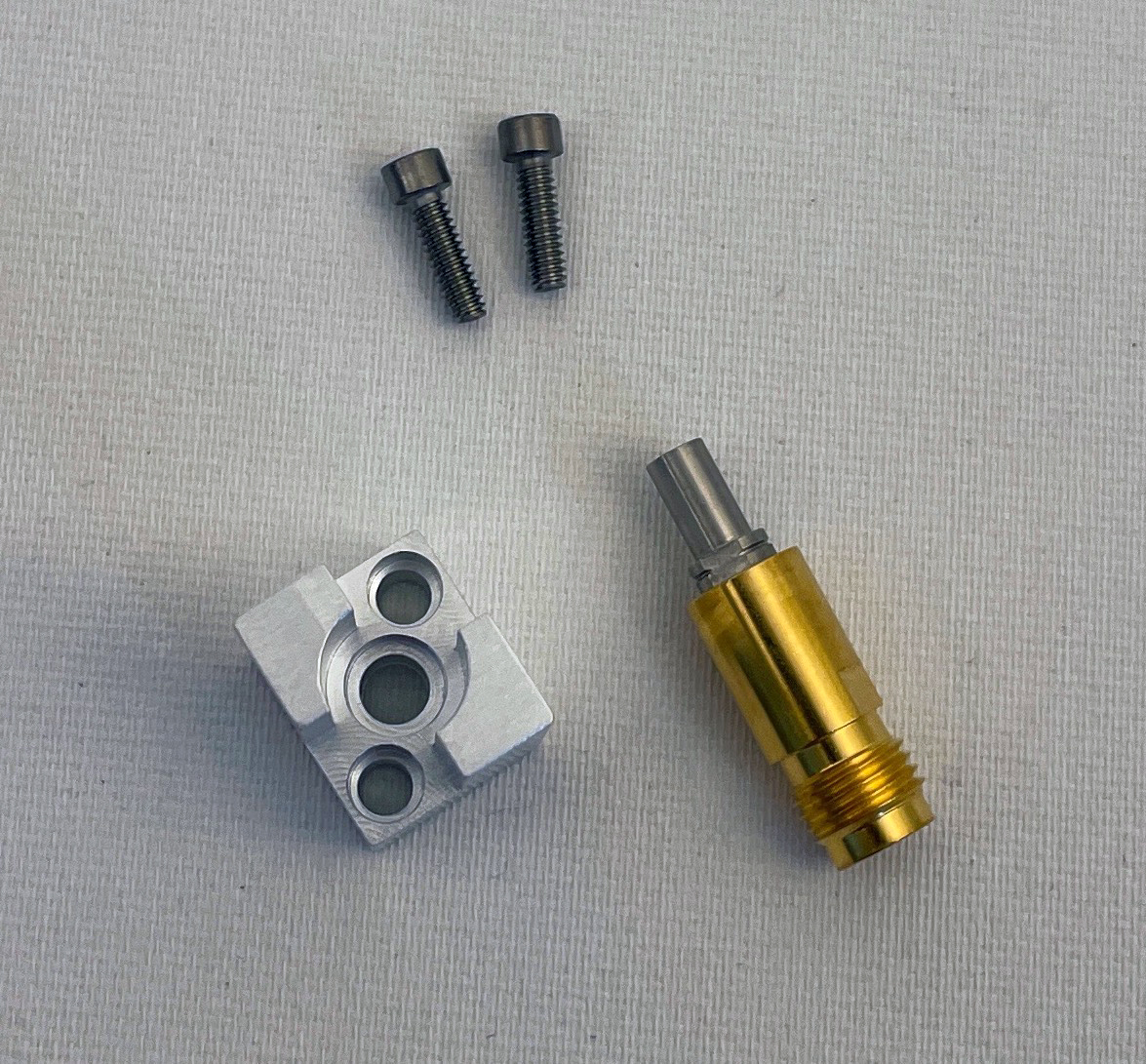

Used to provide precision alignment for GPPO Male to SMA Jack adapter to calibrate the Fixture path in place of a RIK0316A or RIK0232A SSMP (aka GPPO) launch.
Place this alignment block on top of the Fixture Insert RIK0316A or RIK0232A .
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MH3FNL1A | 1 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | ||
| 2 | MN2FU21A | 1 | ADAPTER, SSMP(m) (GPPO(m)) - SMAF | Coax | ||
| 3 | W1MFFNWA | 1 | Cal block SSMP launch | MchFb |
