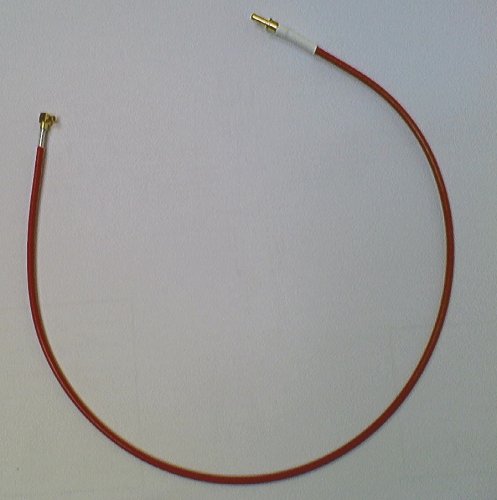

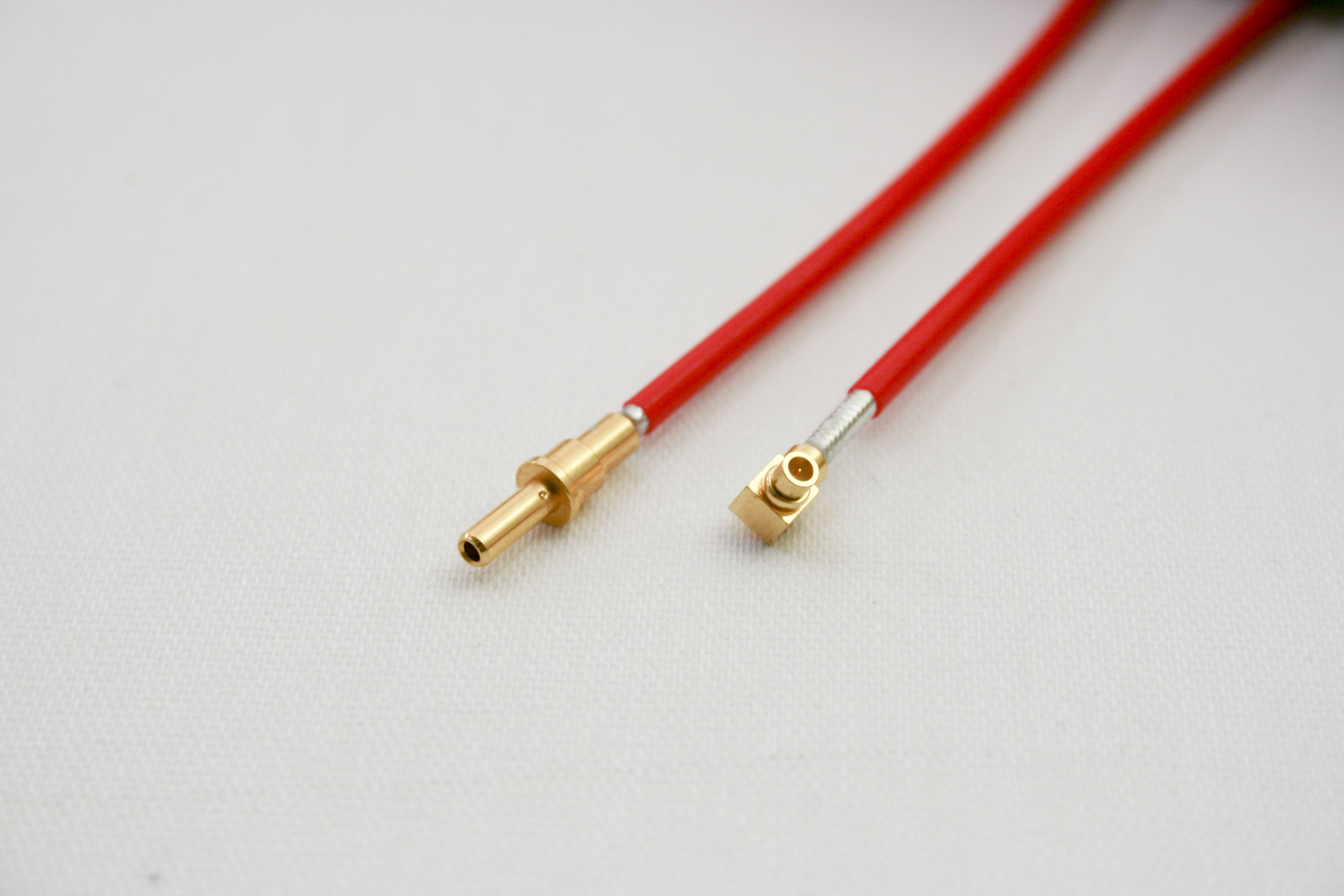

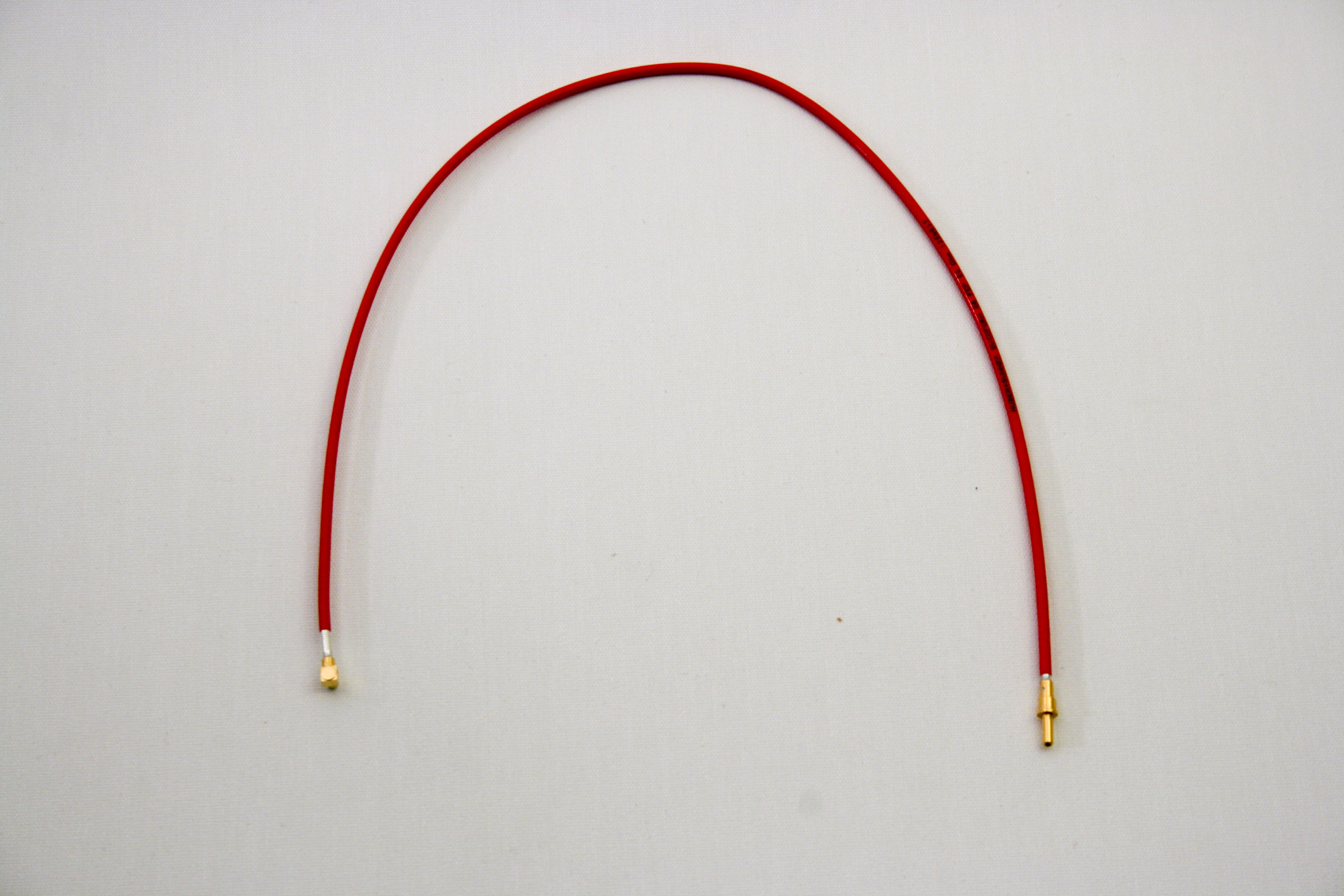

RF Cable, Conform, PKZ#12(f)-90° MMPX(m), 16"
High Frequency Launch to DIB - 40 GHz
Part Number: RIK0181A
Preferred cable for routing 40 GHz signals from the RIK0164A TIM RF Block to the RIK0156A MMPX DIB Launch.
Requires RIK0257A MMXP Extraction tool for disconnecting cable.
| Quantity | Connector Type(s) | Genders | Angle(s) | |
|---|---|---|---|---|

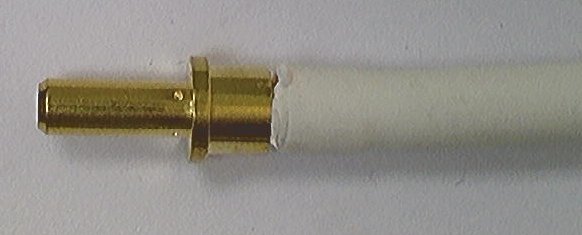

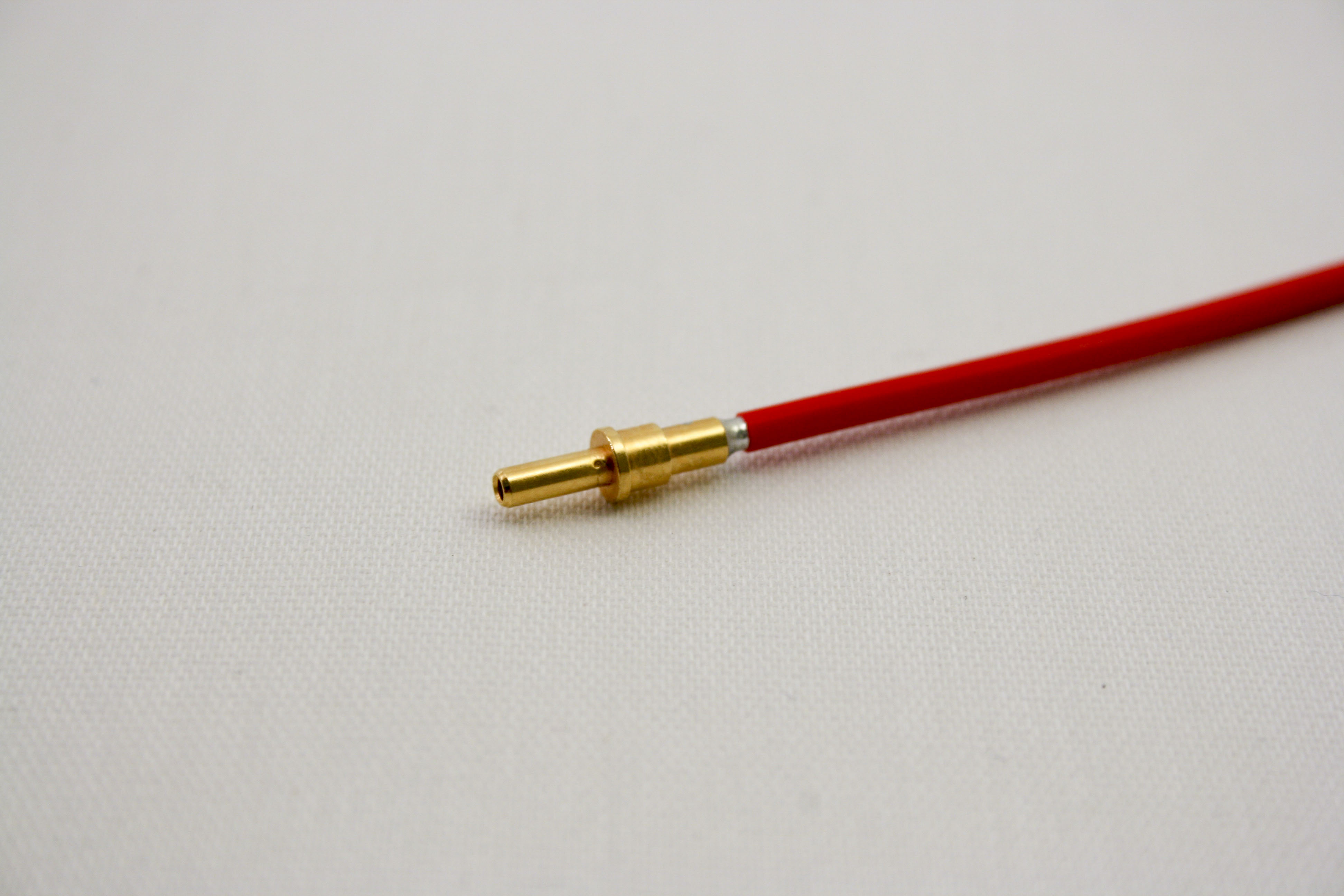

| Side A | 1 | PKZ #12 | F | |

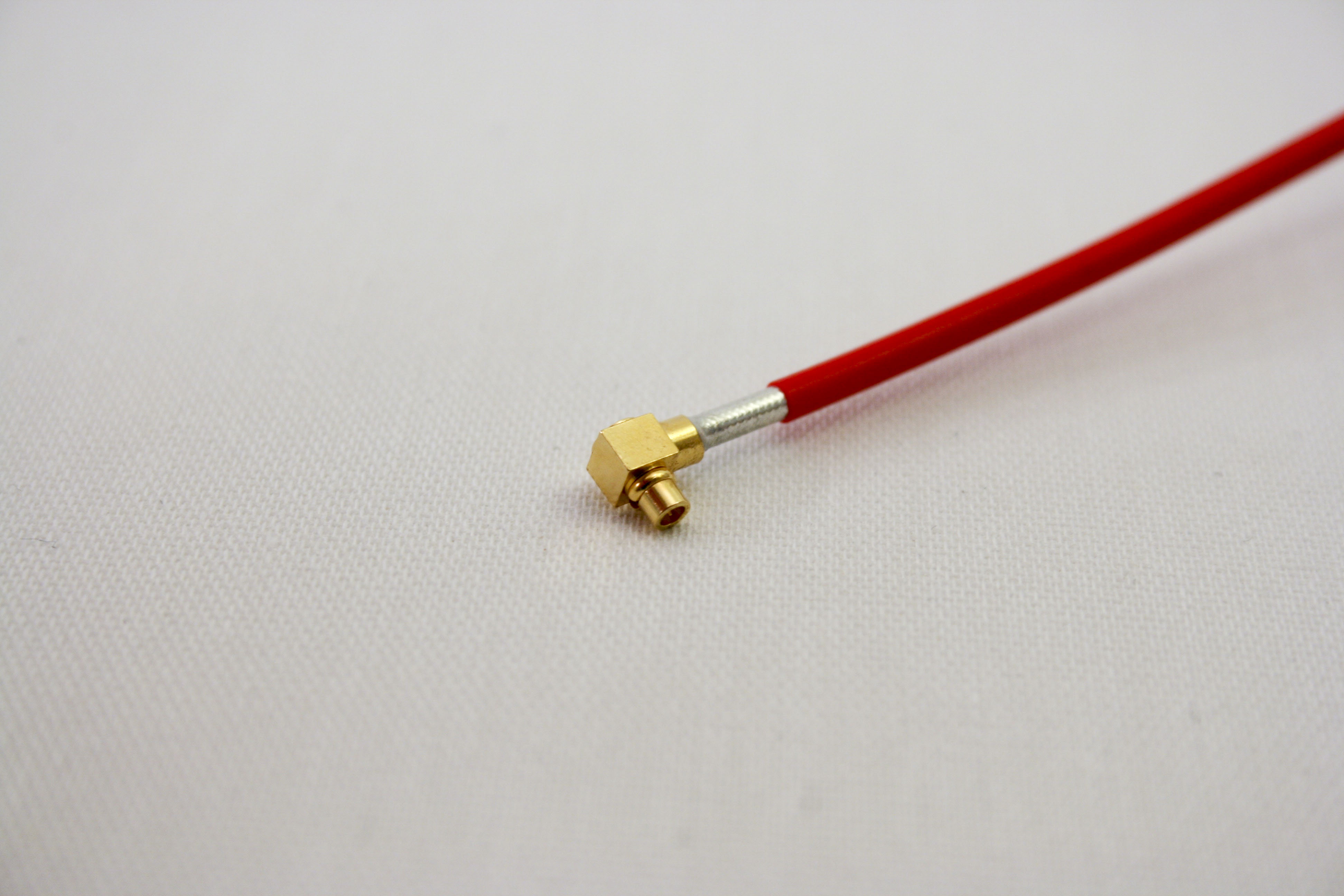

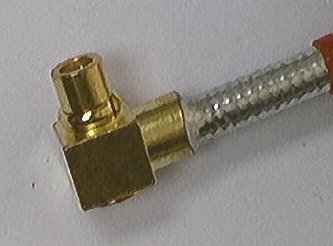

| Side B | 1 | MMPX | M | 90° |
Max Frequency: 40 GHz
Cable Length: 16 inches
Cable Structure: Conformable (Limited Bend, Mid Stability)
Fixture Block Type:
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MLYJ7N3A | 1 | Coax Cable, #12F-mmpx Rt Angle, 16", CNF* | Coax |
