LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 07/19/2012.
View RIKs with Limited Availability for a complete list.
Expiration Reason: RIK0183A (QTY 1)
Aditional replacements may be found by searching for RIK0080 (change the REV letter) or RF Cable Kit (15" SSISM to MCX 90°, 6 Cables).

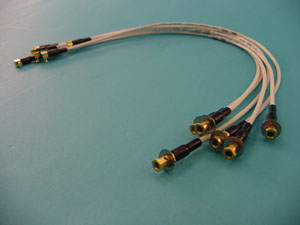

Provides RF signal routing from RI7100A fixture bottom plate to internal fixture modules or to the fixture top plate RF adapters. Cable has plastic coating to prevent shorting to active areas inside the fixture. MCX connector is at 90 degrees to cable axis.
Quantity | Connector Type(s) | Genders | Angle(s) | |
---|---|---|---|---|
Side A | 6 | SSIS | M | |
Side B | 6 | MCX | F |
Max Frequency: 12 GHz
Cable Length: 15 inches
Cable Structure:
Fixture Block Type:

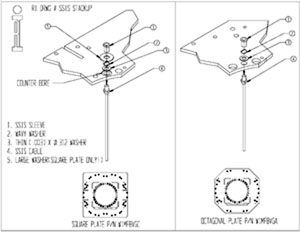

Contact Support for assembly instructions.
Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
---|---|---|---|---|---|---|
1 | MHZYCC3A | 6 | Coax, SRC-405SF, ssism-mcx 90° 15"* | Coax |
