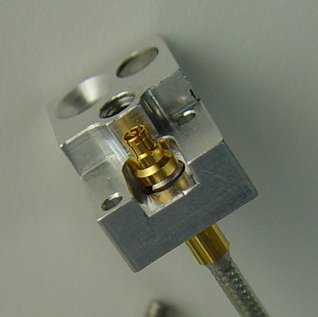

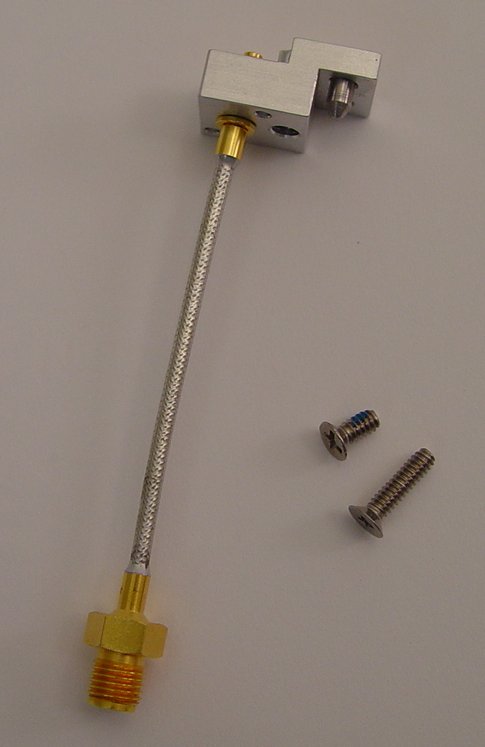

Matrix RF Insert, 20 GHz SSMP (Fixture Side)
Fixture side of resource pair. Requires RIK0216A SSMP Connector. Frequency to 20GHz. Power up to CW 100 Watts.
Part Number: RIK0217C
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.
Bottom and TOP shown installed.
 |  |
Board Bottom (RIK0216A) | Fixture Top (RIK0217C) |
SSMP PCB Application Note_v5.pdfFor Calibration buy this
©2025 Roos Instruments, Inc. All rights reserved.
Reference URL:
http://roos.com/docs/JCON-9DDM5C?Open
Related Documents:
 | Matrix Top Plate RF Interfaces |
| SSMP Connector Installation |
For Calibration buy this
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MH3FNL1A | 1 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | ||
| 2 | MT01M76B | 1 | ssmp floating platform* | MscAssy |
