LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 12/13/2011. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0168A

Expiration Reason: Design Changes

Aditional replacements may be found by searching for RIK0143 (change the REV letter) or Use RI0K168A - RF Block Assem 16RF, Fixed Cabling - Cassini.

Use RI0K168A - RF Block Assem 16RF, Fixed Cabling - Cassini

Matrix Fixture Bottom plate - RF cable top load for fixed cabling in standard Cassini Fixtures.

Part Number: RIK0143B

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

$420
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

This part has been upgraded with a design that makes it easier to use, please consider using RIK0168A.

Fixture block used to interface with corresponding RF TIM. Has locations for up to 16 RF connectors.

Replaces "all" previous RF Blocks - RIK0143A, RIK0103A, RIK0103B

Related Documents:


Product Docs

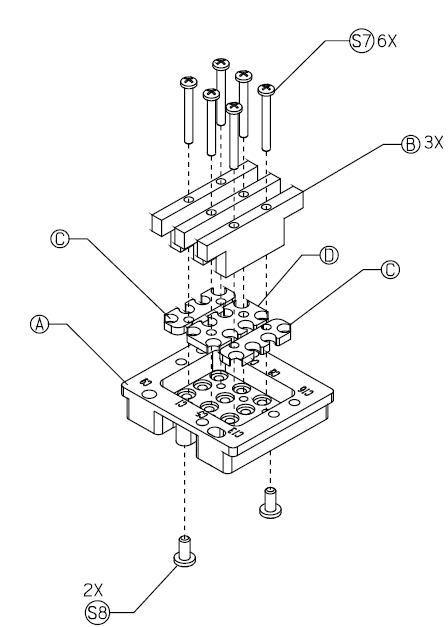

Fixture Assembly Steps - Cassini - RF Block (RIK0143B)

MN5HVK6A RIK0143B.pdfMN5HVK6A RIK0143B.pdf


ATTENTION: Assemble with cables in position on the Bottom Plate.

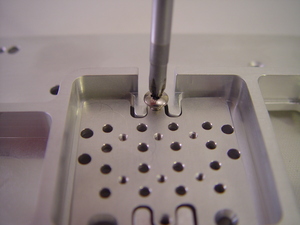

  1. Insert "E" into bottom plate with alignment holes facing inward, screw "F" into bottom plate.
    (bottom)

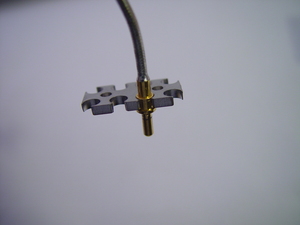

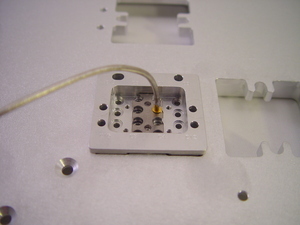

  2. Place PKZ Cables into their appropriate position and load alignment layers ("C", "D", "C") and insert .

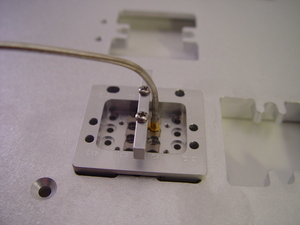

  3. Install all 3 "B" blocks with "A" screws.
    4. Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1S7M6JGVS1A6SCREW, PAN PHIL, 2-56 X 3/4", SSHrdwr
2S8MC7SVE1B2SCREW, TRUSS PHIL, 4-40 X 3/16" SS W/PATCHLOCKHrdwr
3MN5HVK6A1ASSY DRAWING RIK0143BDcmnt
4AW1MFCNZF1S3 HYP MFIXMchFb
5BW1MFEUXB3S3 SCREW BLOCK MFIXMchFb
6DW1MFEVYA1BRKT PKZ S3 8POS SCREWMchFb
7CW1MFEVZA2BRKT PKZ S3 4POS SCREWMchFb
BOM Refreshed:05/11/2020 06:23 PM
