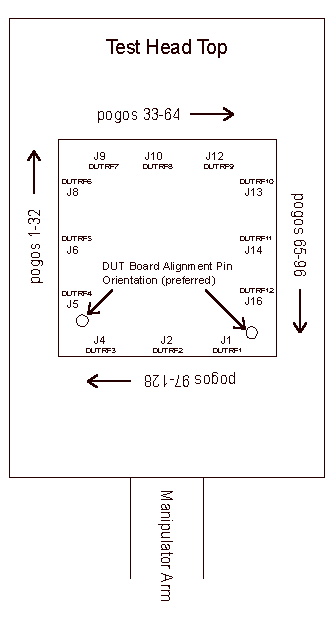

This document describes the fixture carrier board pogo orientation in relation to the test head for the single-site fixture. It can be used to orient Pin one (Pin 1) of the part to the Dut board nomenclature.

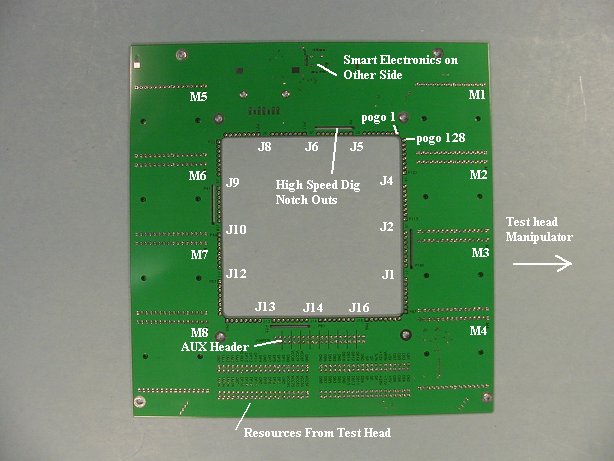

Carrier View from Test Head Bottom:
