LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 11/20/2008. View RIKs with Limited Availability for a complete list.

Aditional replacements may be found by searching for RIK0145 (change the REV letter) or Matrix Fixture, Cassini 8 TIM Bottom Plate Assembly.

Out of Stock: Ships Contact Factory ARO

Matrix Fixture, Cassini 8 TIM Bottom Plate Assembly

Fixturing, Cassini 8 slot test heads

Part Number: RIK0145A

In Stock: 0

Estimated Restocking Time: Contact Factory

$3,390

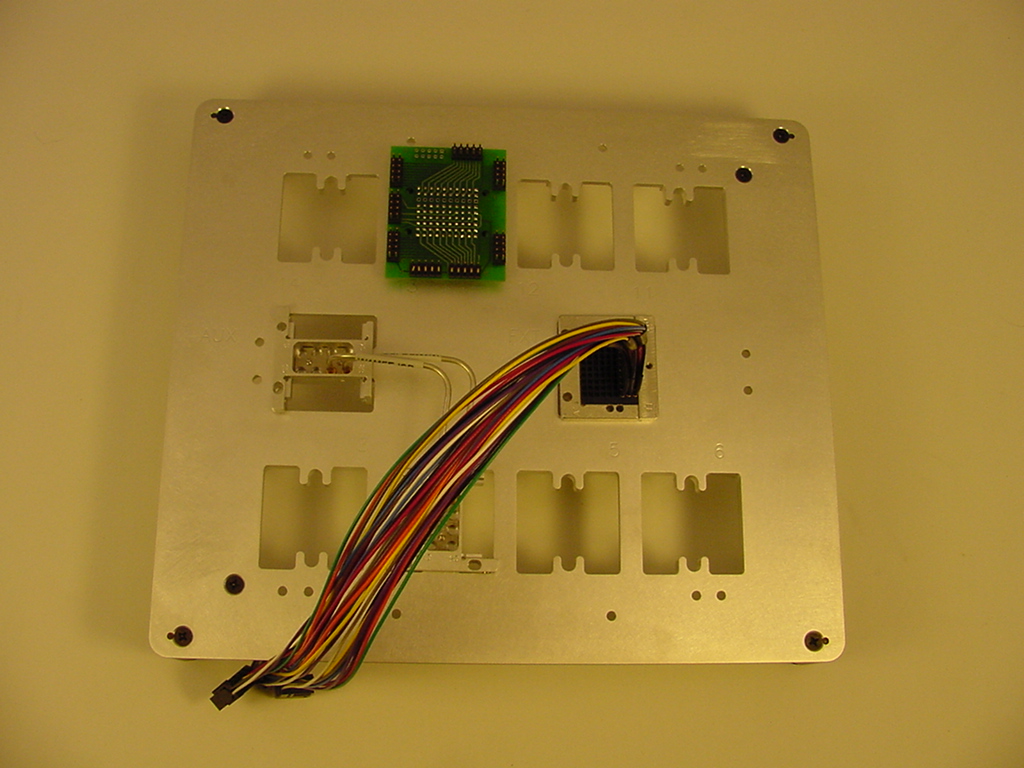

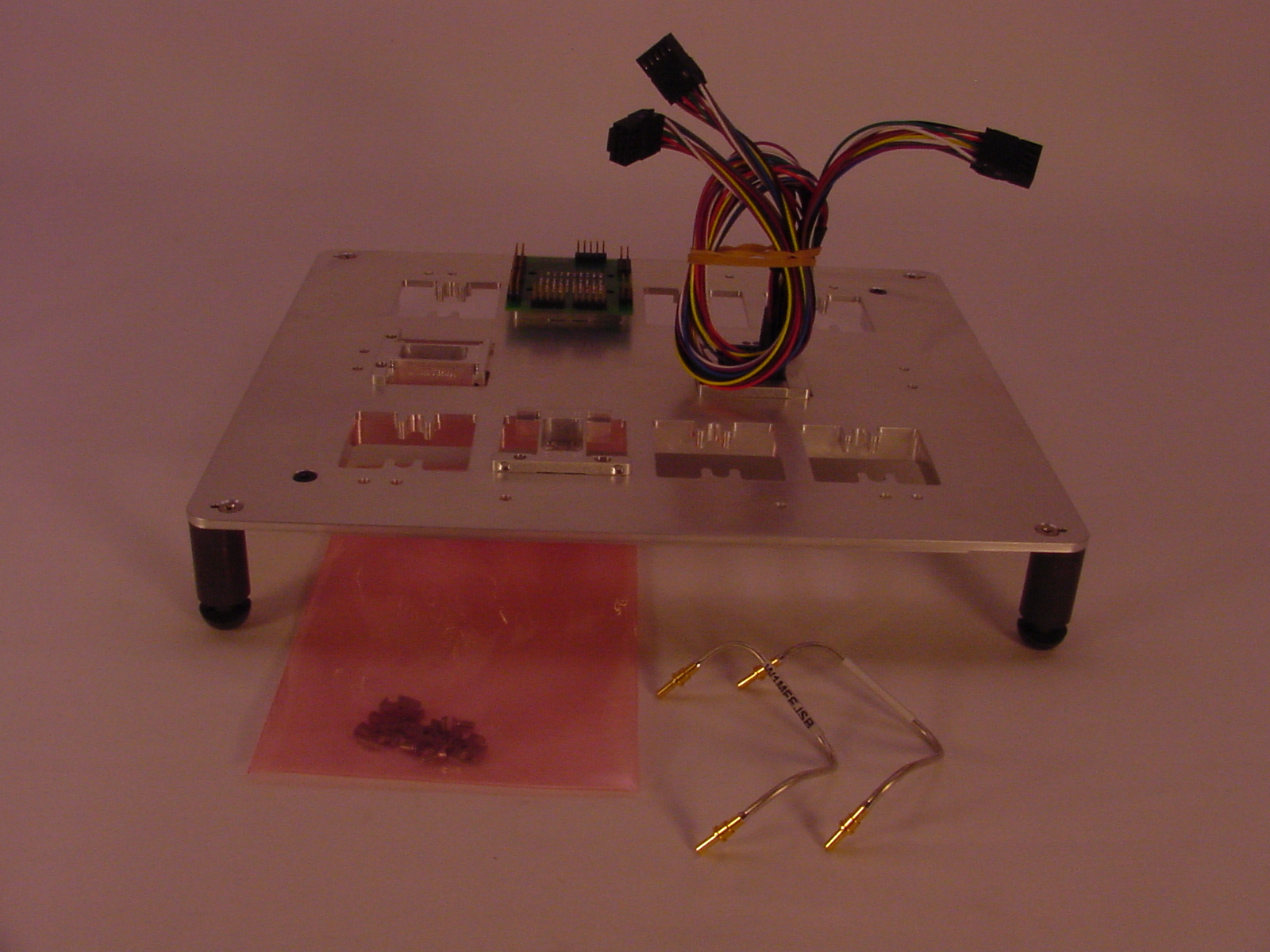

Cassini bottom plate with fixture interface block and cables. Only compatible with Cassini (not RI7100A). To be used with the RIK0120A Top Plate Assembly. You must include RF and DC blocks for each TIM.


Related Documents:

User account required Create new account
Database 'Product Docs', View 'All Documents', Document 'Test Fixtures - Bottom Plate Assembly Resources - Cassini'Bottom Plate ResourcesRIK0122A.JPGDSC01585.JPG

Item Ref Part Number QTY Description Category Qty in Stock
1M6JGVS1A6SCREW, PAN PHIL, 2-56 X 3/4", SSHrdwr
2MC7SVE1A2SCREW, TRUSS PHIL, 4-40 X 3/16" SSHrdwr
3MC7SVE1A4SCREW, TRUSS PHIL, 4-40 X 3/16" SSHrdwr
4MCJK5K1A6SCREW, 100° FLAT PHIL, 6-32 X 5/16", SS, BLKHrdwr
5MHTLXT3B1Cassini Matrix Fixture Control Block, 18" (ROW G/H/I)*CblMsc
6MMKECE1A1Labels, TIM Fixture Interface PlateMchCmp
7RIK0103B1RF Block Assembly 16 RF*CstmrKt
8W1MFCBZM1MOD FIX BOT, 8 SLOTMchFb
9W1MFCNZF1S3 HYP MFIXMchFb
10W1MFCPNA1Label, Fixture Orientation arrowMchFb
11W1MFCXGE4FOOT, FIXTURE MFIX*MchFb
12W1MFECGA2Actuator Fixture Switch, Cassini*MchFb
13W1MFEJRB1Coax,Semi-Rigid,.085,#12F-#12F 5.5" bent short for fixture*Coax
14W1MFEJSB1Coax,Semi-Rigid,.085,#12F pkz-#12F pkz 5.5" bent long for fixture*Coax
15W1MFEUXB3S3 SCREW BLOCK MFIXMchFb
16W1MFEVYA1BRKT PKZ S3 8POS SCREWMchFb
17W1MFEVZA2BRKT PKZ S3 4POS SCREWMchFb
18Y0007WA21Universal Block Assy, DC, Cassini Matrix Fixt. DC Block*PcbAssy
BOM Refreshed:05/11/2020 06:26 PM
